English:

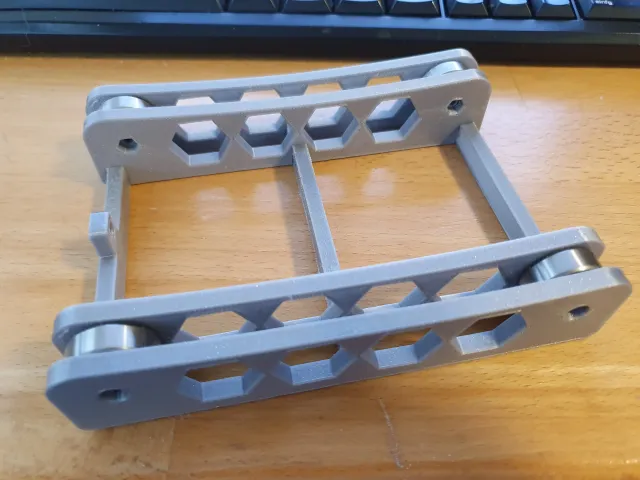

Holder for filament spools with a diameter of 200mm and 88mm width (e.g. Filament PM). The holder is screwed and plugged in, so it would be possible to extend it for larger spools.

Parts you need:

4x 608ZZ bearing
4x M3x12 cylinder head screw with hexagon socket
4x M3 nyloc nut

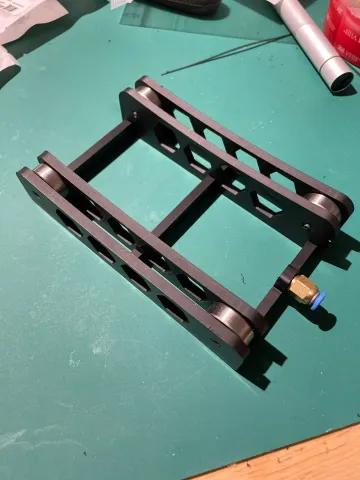

For use with the reverse Bowden system, please print the GCodes or the files Connecting_part_m5_fitting.stl, Connecting_part_middle.stl and Connecting_part_back_front.stl. In addition, an IQS plug connection (e.g. IQS-MSV plug connection) is required. Otherwise please print 2x Connecting_part_back_front.stl and Connecting_part_middle.stl.

Deutsch:

Halter f\u00fcr Filament Spulen mit einem Durchmesser von 200mm und 88mm Breite (z.B. Filament PM). Der Halter wird geschraubt und gesteckt, somit w\u00e4re eine Verbeiterung f\u00fcr gr\u00f6\u00dfere Spulen m\u00f6glich.

Ben\u00f6tigte Teile:

4x 608ZZ Kugellager
4x M3x12 Zylinderkopfschraube mit Innensechskant
4x M3 Mutter selbstsichernd

Zur Nutzung mit dem reverse Bowden System bitte die GCodes oder die Dateien Connecting_part_m5_fitting.stl, Connecting_part_middle.stl und Connecting_part_back_front.stl drucken. Zus\u00e4tzlich wird noch ein IQS Steckanschluss (z.B. IQS-MSV Steckanschluss) ben\u00f6tigt. Ansonsten bitte 2x Connecting_part_back_front.stl und Connecting_part_middle.stl drucken.

","category":{"id":"2","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"2","name":"Other Printer Parts & Upgrades","nameEn":"Other Printer Parts & Upgrades","description":"Customize your 3D printer with hundreds of enhancements! Download spool holders, camera mounts, LCD covers, fan shrouds and even the Lack enclosure!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2021-03-15T08:47:57.417904+00:00","firstPublish":"2021-03-14T19:42:06.046390+00:00","datePublished":"2021-03-14T19:42:06.046390+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Filament spool holder with optionally fitting for 4mm ptfe tube connector.","likesCount":75,"makesCount":4,"liked":null,"printDuration":"4.86","numPieces":2,"weight":"56.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"8","name":"PET","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":311,"displayCount":3232,"filesCount":7,"privateCollectionsCount":50,"publicCollectionsCount":44,"pdfFilePath":"media/prints/59964/pdfs/59964-filament-spool-holder-8f9931ef-5f35-49fc-a4c8-105b76a91038.pdf","commentCount":6,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"315938","filePath":"media/prints/59964/images/628450_3c2d43ee-7f4e-4499-996d-74dc6daf5916/filamenthalter.jpg","rotation":0,"imageHash":"NQgOBYDoh5iHd3h/hYWHiBd4cIEI","imageWidth":1073,"imageHeight":715,"__typename":"PrintImageType"},"images":[{"id":"315938","filePath":"media/prints/59964/images/628450_3c2d43ee-7f4e-4499-996d-74dc6daf5916/filamenthalter.jpg","rotation":0,"imageHash":"NQgOBYDoh5iHd3h/hYWHiBd4cIEI","imageWidth":1073,"imageHeight":715,"__typename":"PrintImageType"},{"id":"315939","filePath":"media/prints/59964/images/628458_e536968e-b7ee-4069-b8e4-c38ec9d87f86/95259f42-f8e3-4837-91d9-0dcc7cbcaedf_web.jpg","rotation":0,"imageHash":"XAgGBID4o6U5mIcum3yPe7tD+A==","imageWidth":2000,"imageHeight":1267,"__typename":"PrintImageType"},{"id":"315940","filePath":"media/prints/59964/images/628459_3afef59a-8bbc-479d-83cd-bae000bab2da/5616d7a4-720f-4413-86d2-a5755155a7a1_web.jpg","rotation":0,"imageHash":"HggKDID1h0ivh4aahnrKf7nvRg==","imageWidth":2000,"imageHeight":1262,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"filament","id":"303","__typename":"TagType"},{"name":"filamentspoolholder","id":"904","__typename":"TagType"},{"name":"ptfe","id":"2596","__typename":"TagType"},{"name":"reversebowden","id":"6839","__typename":"TagType"},{"name":"4mm","id":"12707","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"256943","filePreviewPath":"media/prints/59964/stls/628451_542992c1-dcc0-4e9f-8fbf-85bf8e43aaec/side_part_outer_preview.png","__typename":"STLType"},"license":{"id":"6","disallowRemixing":true,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"102666","handle":"MarAlMe_102666","verified":false,"dateVerified":null,"publicUsername":"MarAlMe","avatarFilePath":"media/auth/avatars/5c/5c3705b8-db1c-45f4-a72d-5e65a4235797.jpg","badgesProfileLevel":{"profileLevel":5,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}
