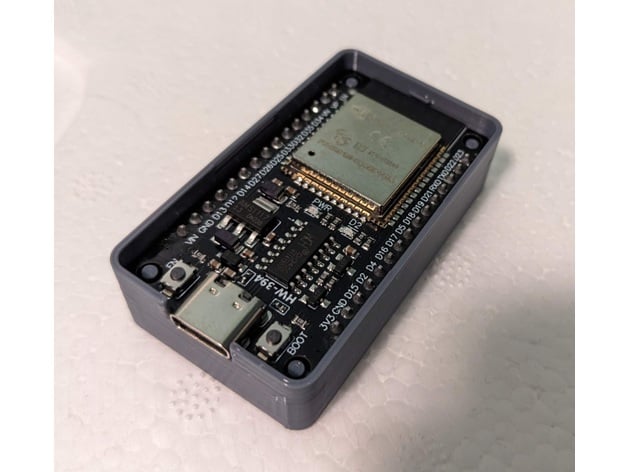

ESP32 Wroom case with Wifi antenna

Simple remix, little bit prolonged, so that you can push trough the Wifi cable
13
187
3
1173
updated October 1, 2023

Description

PDF

Maybe there is a better solution, but just in case you bought this board from Ali - ESP32 Wroom 32 with USB-C - https://www.aliexpress.com/item/32964479255.html - with CH340C chip, you must cut VCC to get antenna working or to improve Wifi without the antenna overal. Read more on https://community.home-assistant.io/t/something-is-very-wrong-with-the-wifi-on-the-esp32-boards-i-ordered-from-aliexpress-is-there-any-way-to-salvage-these-and-fix-the-wifi/477631



Note to the print - the LED holes might be not perfectly aligned but you can always post adjust it in Prusa Slicer.

Also I glued the ESP32 board with hot-glue gun to secure it.

Tags



Model origin

The author remixed this model.

ESP32 WROOM-32 USB-C Case
by thequinox (thingiverse.com)

Differences of the remix compared to the original

Simple remix, little bit prolonged, so that you can push trough the Wifi cable
