Replacement button for Stanley Classic One-Hand Vacuum Lid

My first published model!

It all started when a friend's Stanley mug had a broken button, and they reached out to me for help. They needed a replacement button, and I saw an opportunity to go a little bit overboard and turn a simple fix into something more interesting.

My friend is a ranger dedicated to fighting rhino poaching in South Africa's Kruger National Park. With this in mind, I aimed to also create a replacement button that not only served its purpose but also carried a meaningful touch.

I enjoyed experimenting with different colors and different levels of embossing so I don't think he will need another button from me soon… :)

Replacement details:

This replacement is for the Stanley Classic One-Hand Vacuum Lid, model number EN12546-1 (https://www.stanley1913.com/products/classic-one-hand-vacuum-mug-lid)

I aim to design buttons for newer models soon.

Variants

• Standard - As close to the original part as possible, some angles changed to make printing easier.
• Rhino
• Zebra
• Make your own!

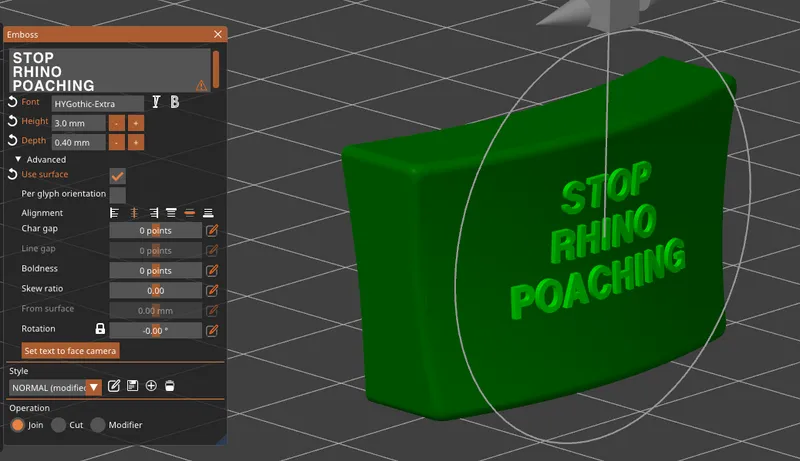

  • You can also use Prusa slicer's new text emboss feature to easily add your own personalized text
  • Fusion360 and Step files included so you can easily emboss or deboss your own SVG files onto the button.

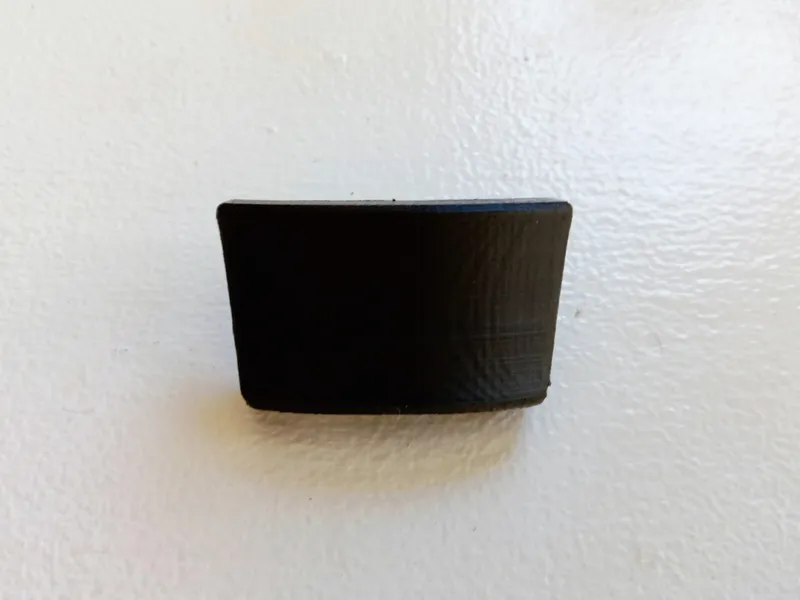

Standard

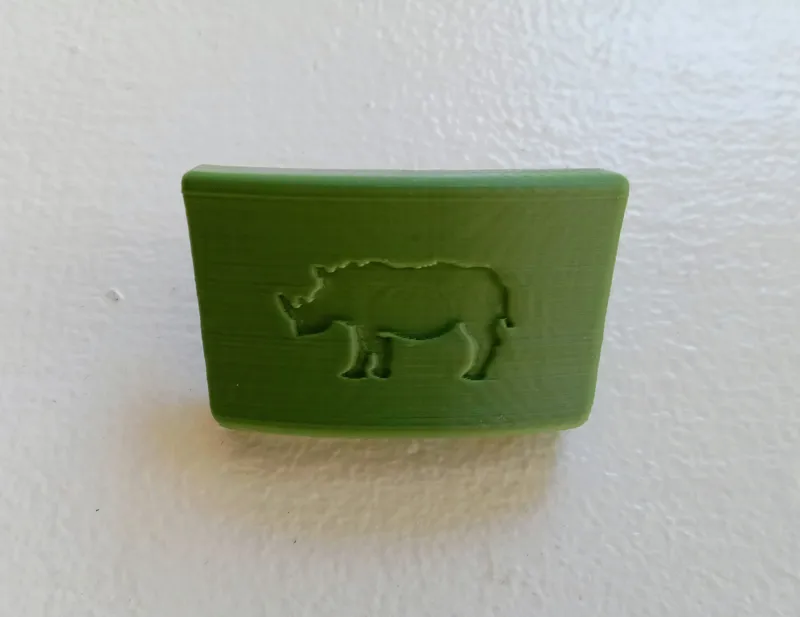

Rhino

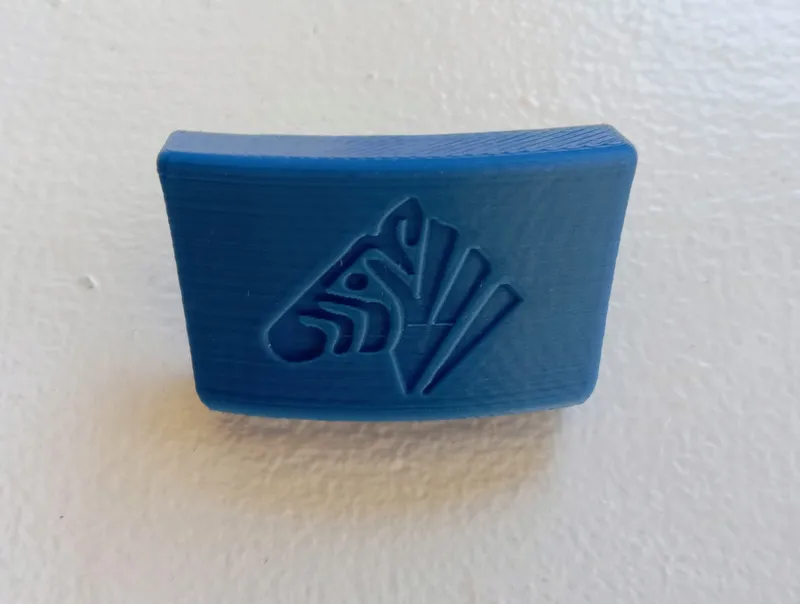

Zebra

Printing details:

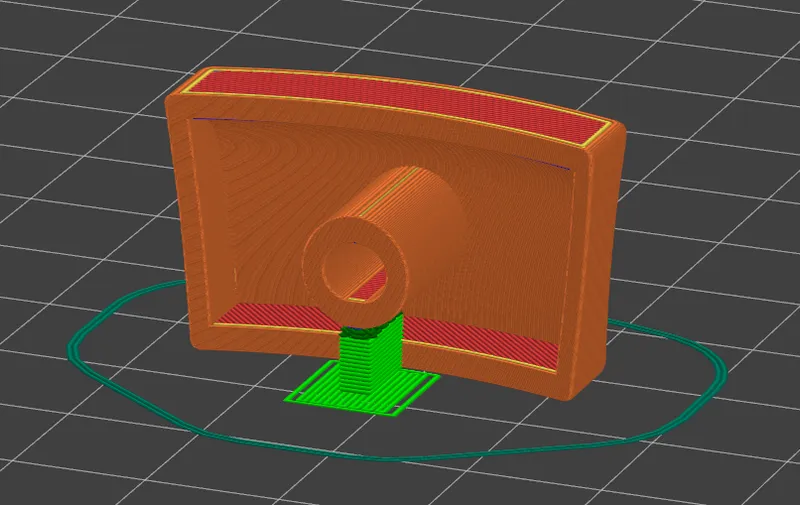

I used supports only under the cylinder, opting for a 0.12 layer height to capture intricate details on the emboss:
