Stealthburner on ender 3 v2 with bltouch and MGN9H linear rail

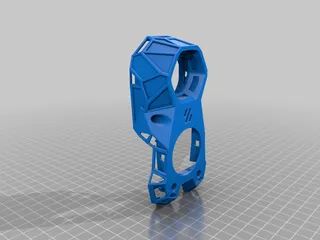

This is a conversion for the Ender 3V2 to fit the Voron Stealthburner as a direct drive setup with the BL-Touch.

BOM:

Belt part:

4 x M3 heat insert

4 x M3x8 BHCS

Bltouch part:

2 x M3 heat insert

2 x M3x6 BHCS

Stealthburner part:

6 x M3 heat insert

2 x M3x16 SHCS

2 x M3x6 BHCS

Other stealthburner part can find at the Voron website.

—————————————————————————————

Update

The belt part v2 is stronger then the v1.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

40%

Filament: Other ABS Black
