Pica Dry Color Caps

Color cap for the Pica Dry Longlife Automatic pencil. Useful for indicating color of lead in the pencil.
54
275
9
884
updated November 12, 2023

Description

PDF

This is a color cap for the lead fill on the Pica Dry Automatic pencil.  These are useful for indicating the lead color loaded into the pencil.

The stores near me stock the pencil but not the color caps, so I made this one.

This relies on a friction fit so your printer should be well calibrated.  I provided a few options for different print tolerances. The 0.15mm version worked well for me.  A lower number will make a tighter fit.

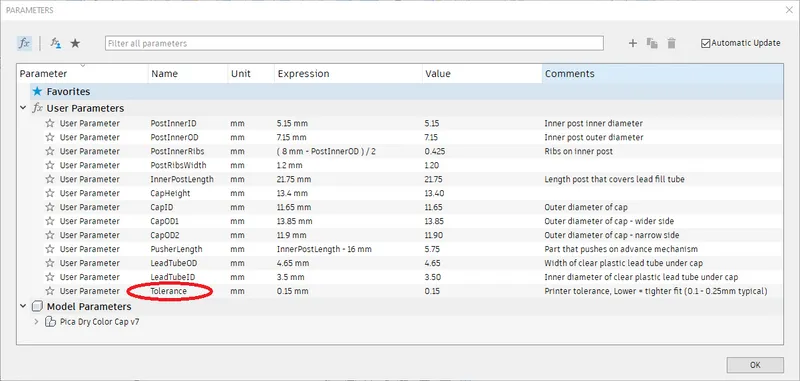

You can also change the fit by changing the “Tolerance” parameter in Fusion 360.  As before a lower number will make a tighter fit.



Print Settings

Printer: Ender 3 Pro w/ Micro Swiss direct drive
Material: PLA or PETG (pretty much anything stiff should work)
Rafts: No
Supports: No
Resolution: 0.08-0.2mm
Nozzle: 0.2mm
Walls: 2+
Infill: Not applicable due to thickness
Walls/Shells: 2+
