mini line-grip

I got inspired by several small line-grips available on the market, more precisely by one removed from sales called the linegrip-nano: https://www.linegrip.com/linegrip-nano/

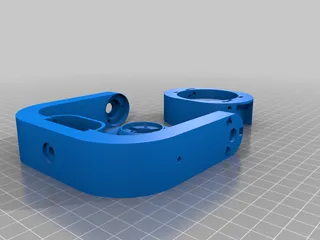

All the design is home made (please see the FreeCAD design file) and printed in PETG+CF and PCTG for the two rigid parts (I ran out of  PETG+CF during the print, probably better suited than PCTG since it is more rigid).  2mm thick walls, 4 perimeters and 20% infill. Weights 70g. Broke after ~10 rigging.

Reprinted in PET-G 100% infill, weights 80g now and did not  break (yet).

The rubber pads are printed in TPU from Filaflex with 100% infill.

Rubber pads are glued with PU glue but cyano-acrylate is also an option. There is a 4mm rope to connect to the rollex (carabiner).

Tested as part of a Buckingham rigging:

https://www.slackshop.cz/img/cms/schema%20systemu%20CS/Cito_Buckingham_Mithril_en.png
