QIDI X-Plus X-Max Filament Cleaner and Backspin Preventer

About

This is a filament cleaner and backspin preventer for the QIDI X-Plus and X-Max. It was originally designed for one of my other designs but I never included it there. It should fit all printers using a 6 mm bowden tube as well.

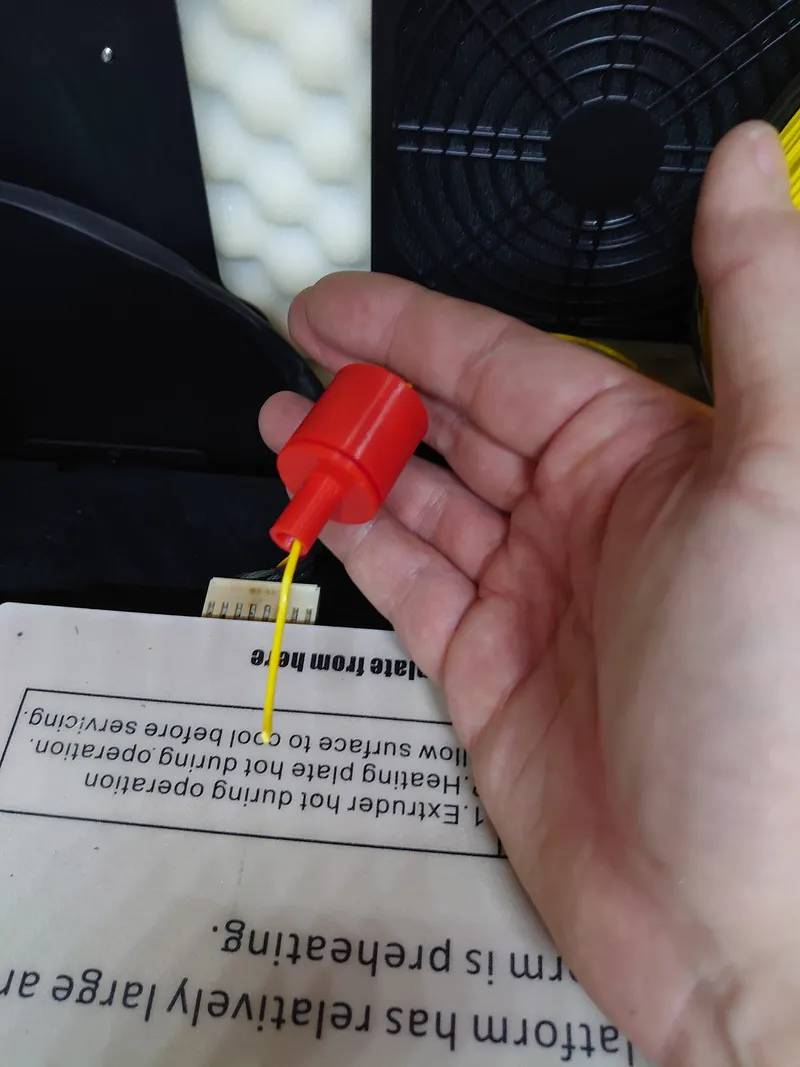

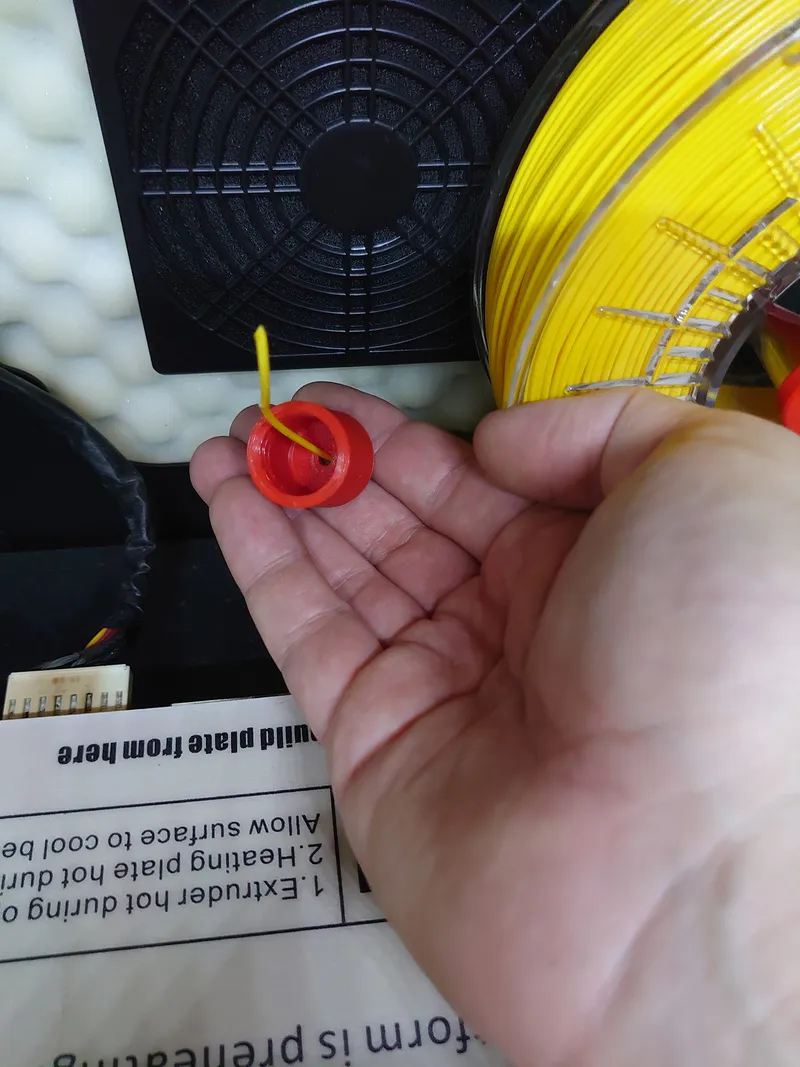

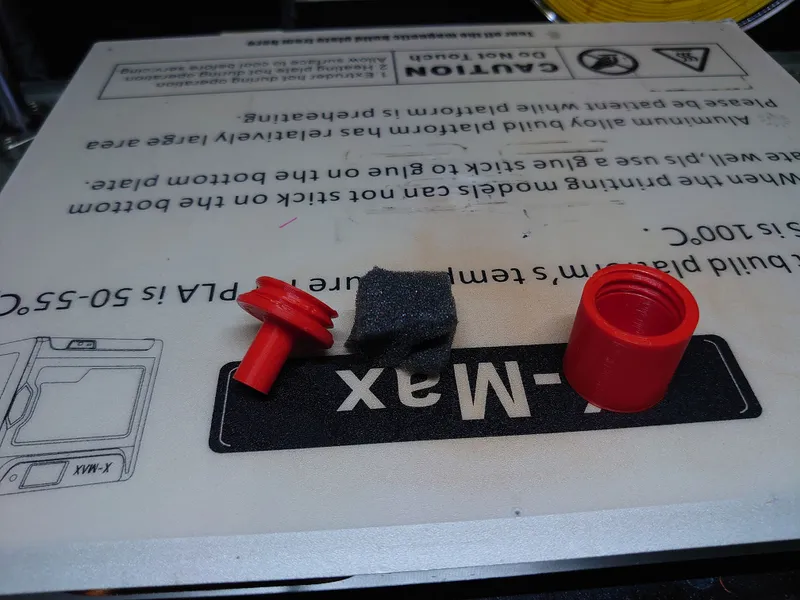

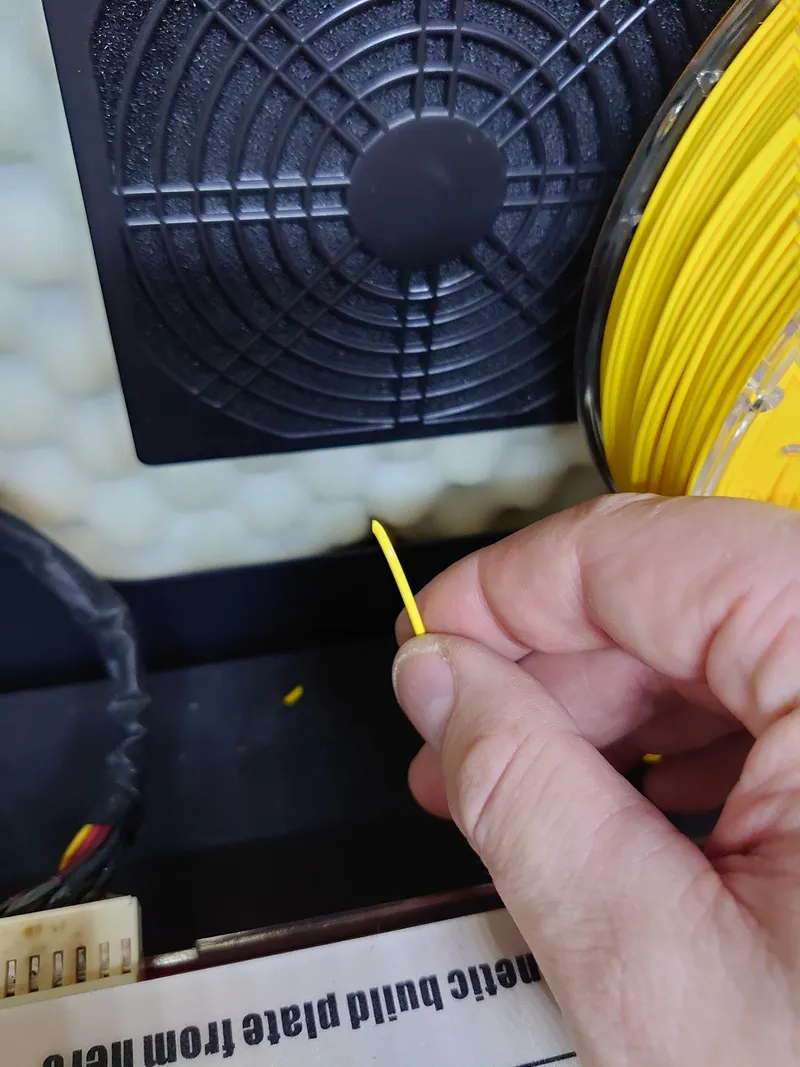

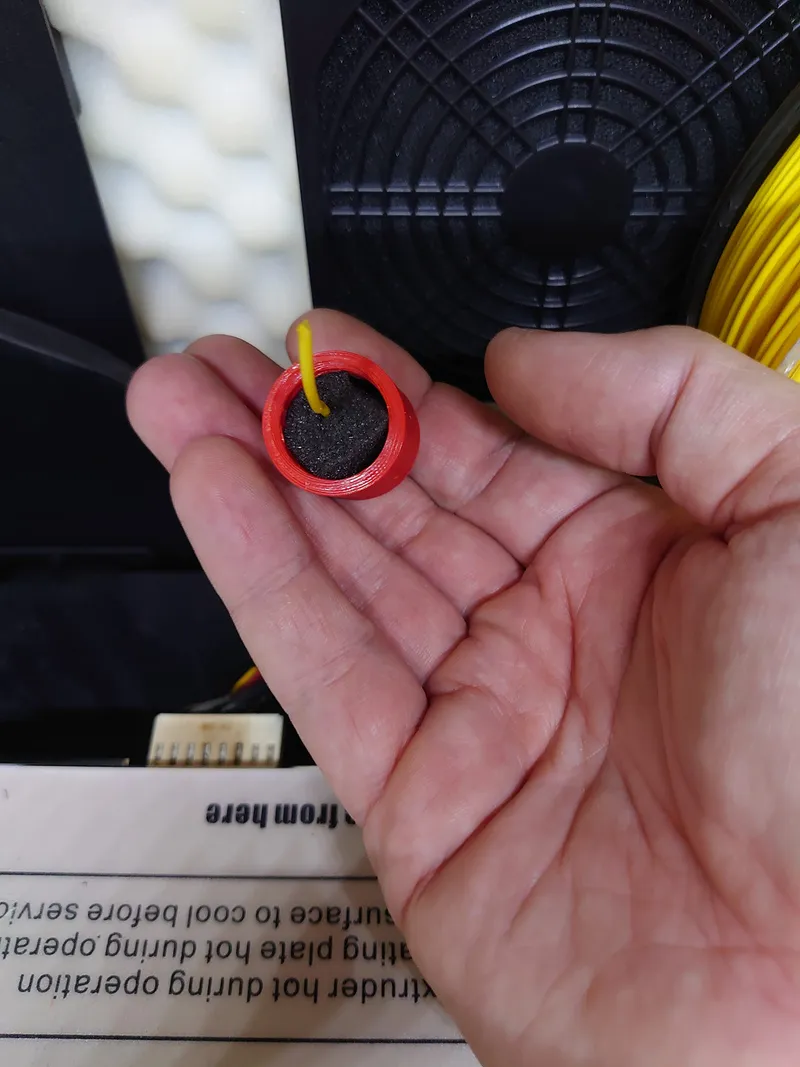

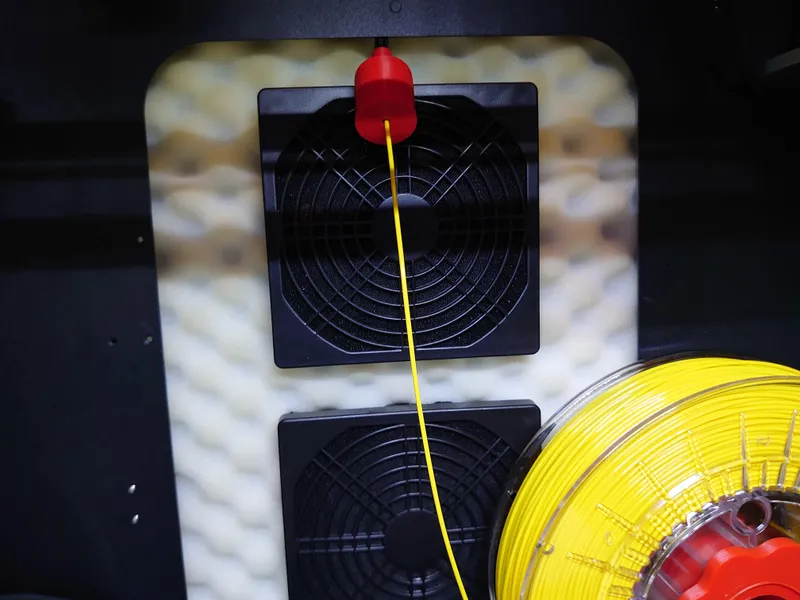

To use, print the two parts. Cut a piece of sponge and place it inside the cylinder. Cut the filament at an angle and thread it through. Screw the two parts together. Place the cylinder over the black filament guide, it should secure itself. You can use it internally like I have done here or anywhere you like.

Next, load the filament in your extruder and you're done.

Support

All my designs and mods on Printables are free to use and remix. They have a non-commercial license. If you enjoy this or any of my other designs you can send me a small donation using the link below. Thanks :)

https://www.paypal.me/humebeamengineering

Print Settings

Printer:

QIDI Tech X-Max

Rafts:

NoSupports:

No

Resolution:

0.20 mm

Infill: 25%

Filament: Fillamentum ABS Traffic Red

Notes:

Print the parts as I have placed them. You shouldn't need to use supports.
