Attachment for holder LED Ring Light

Remix of my own model LED Ring Light Tripod Adapter.  I removed the need to use the original really bad tripod. Moreover, the light is closer to the object.

Print instructions:

I decided to use PETG, but you can use PLA as well. Rubber pad is printing from TPU (Shore 96A). Printing the model does not require any special settings. I used supports, but they are not necessary. See the attached 3MF file for detailed print settings.

Part List:

• Printed parts
• Bolt 1/4” x 5/8” UNC [x1]
• A piece of rubber with a thickness of 1.5 - 2 mm. I used a piece of rubber outsole. Or you can print this part for example from TPU, the 3D model is included.

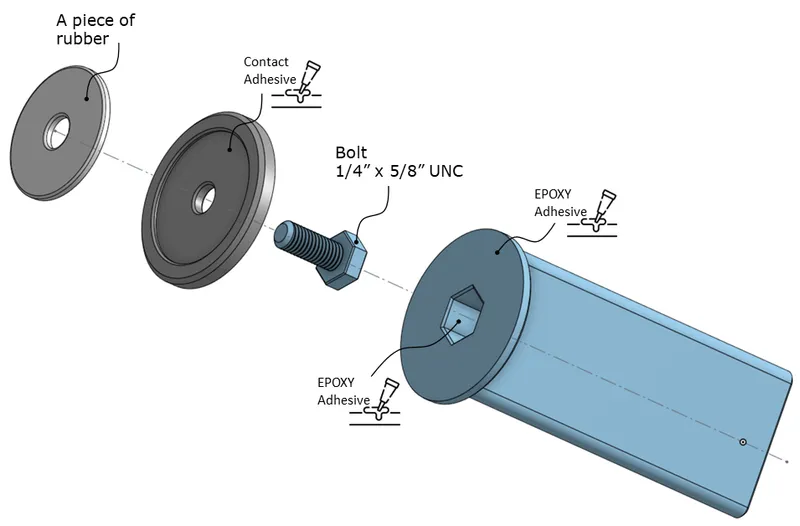

Assembly Instructions:

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape.

OnShape Link

Variants:

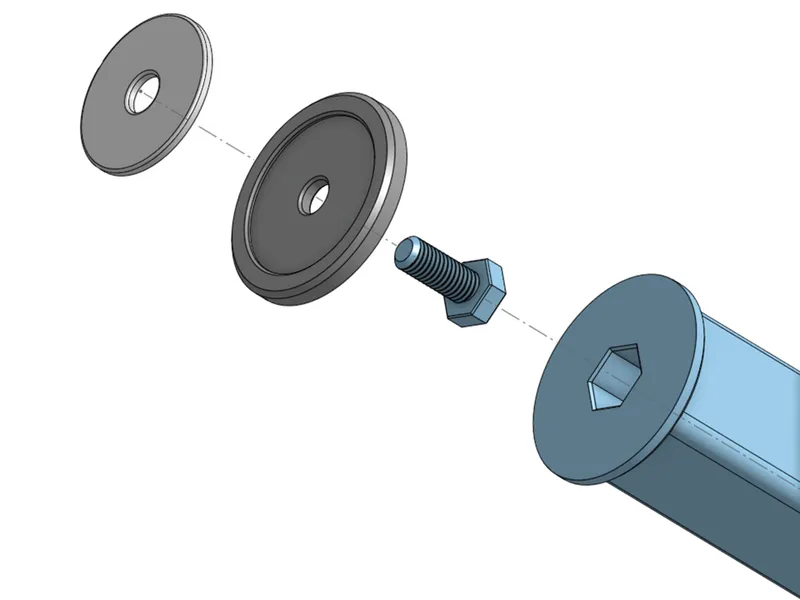

A piece of rubber will ensure a better hold of the LED light. I recommend this option.

If you don't have a piece of rubber or you don't want to use rubber pad , you can print a simplified version.

Note:

Please don't forget to leave a rating or a comment. I will be glad for any feedback, so I can correct any mistakes in the design. Thank you very much.

Happy printing!

Replacement of a low-quality tripod. The required length can be obtained by simply editing the source 3D model.
