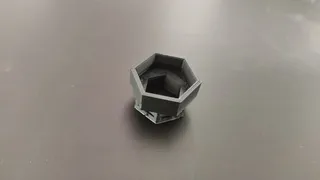

Simple Cherry MX -compatible keycap

A simple keycap for Cherry MX -style switches.
5
101
1
503
updated September 18, 2023

Description

PDF

I was experimenting with keycaps printed out of wooden fiber filament and came up with this simple design that fits my Keychron Q1 (should fit most other keyboards with a cherry mx stem, too). I was asked for the model, so I decided to upload this to Printables as my first model.

I used the esc key for reference: If you are planning to print multiple keys, make sure the keycap fits all of them.



For the final print, I used 0.12mm layer height and wooden fiber PLA, flat side on the bed with no supports.
