Sensor community (airRohr) case

General description

This case is designed to contains the parts used in this kit: https://sensor.community/en/sensors/airrohr/

• NodeMCU v3 (ESP8266)
• sds011 particule sensor
• BME280 temperature sensor

This box is designed for outdoor use under shelter.

Outer dimensions: 155.2 x 92.2 x 34.4

Print instructions

• Use a PETG filament that is more resistant to outdoor conditions.
• No support required to print both parts.

Assembly instructions

1. Connect all components together as described on https://sensor.community/en/sensors/airrohr/
2. SDS011: Start by inserting the flexible tube into the circular hole and then clipping the SDS011 to the case (no screws required for assembly)
3. NodeMCU: Clip the NodeMCU (no screws required for assembly)

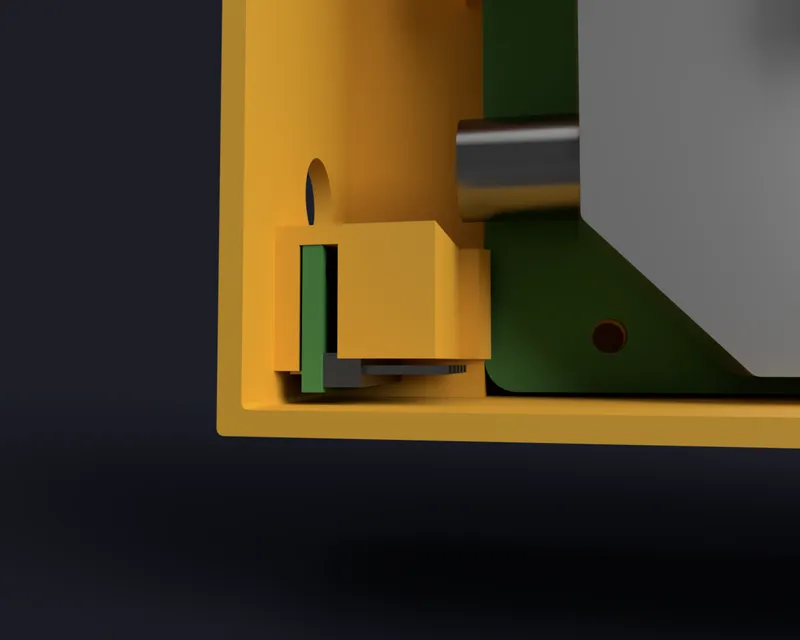

4. BME280: insert the bme280 into the slot:

1. Cut the thin wall to let the usb cable pass through:
