Passport box for travels

I've you're always interested in keeping you're passport safe and avoid damages, a protection is best.

This case can store an international passport and some other small documents, like boarding passes, …

It uses a rubber band to keep everything inside and allows to add an additional rubber band with handle to the front. This could be used as quick additional space for anything.

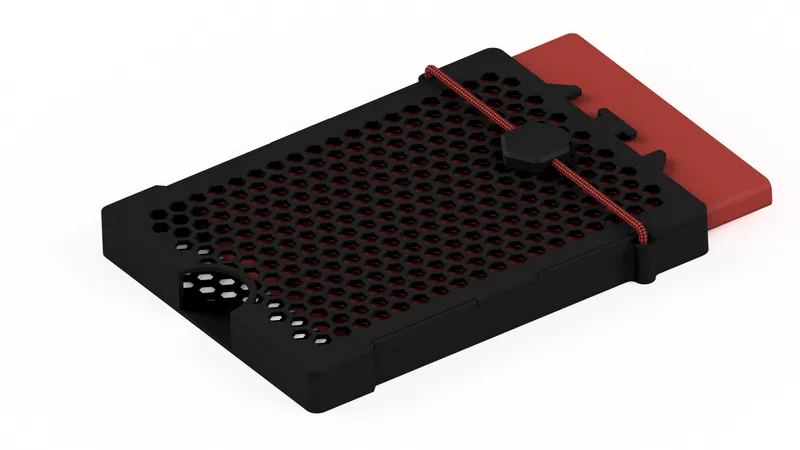

Passport Box

Dimensions:

• 95 mm x 130 mm x 10.5 mm passport size
• 109 mm x 140 mm x 13.7 mm total size

Print settings:

• 0.2 mm layer height
• 3-4 bottom/top layers
• PLA or PETG (recommended)
• no supports

Assembly:

• rubber band, diameter 2-3 mm
• 5 minute epoxy or super glue

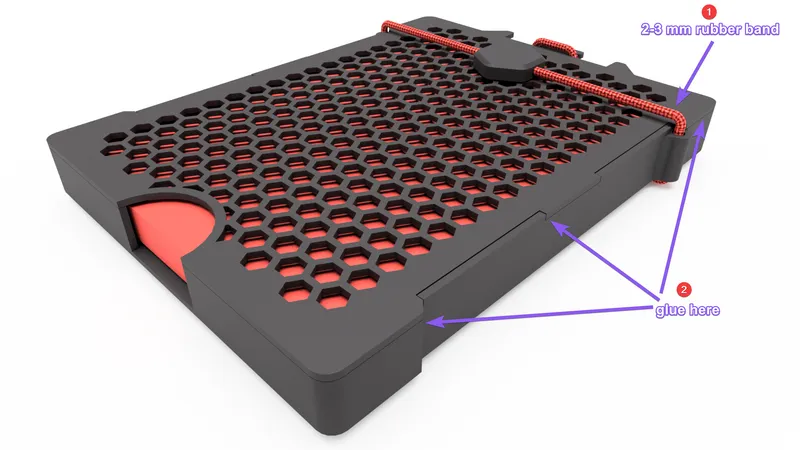

First install the rubber band to the back and ensure it will be tight enough when placed around the front flaps. Two knots on the rubber band ends should be enough. They will slide into the holes on the sides of the bottom part pretty easy. Same attachment process for the front rubber band.

Then glue the front plate to the bottom part. Ensure they will be nice and flush on the glue pads.

Lastly attach the rubber band handle on the front band. I will snap, but a bit glue won't be wrong.

Update 22.09.2023

Uploaded newer version with several improvements (V11 files):

• different width 90mm and 95mm for wider passports
• front an top rubber band can now be attached separate. This will help to keep both strong enough.
