Olfa Utility Knives Replacement Slider

This is a replaceable slider part for Olfa 18mm blade knives when the screw hole on the slider becomes damaged and cannot be tightened.

I previously released a replacement part for slider part C here https://www.printables.com/model/413986-replacement-slider-parts-for-olfa-utility-knives.

 However, it was also usable for the knife with slider A, but there was an issue with its appearance as some parts protruded from the knife's body. Therefore, I have designed a replacement slider that is compatible with both slider part A and slider part C.


Print settings:

• Filament: PETG
• Layer height: 0.2mm
• Supports: No
• Perimeters: 2

Required other than printed parts:

• 1x M4 nut

Assembly:

• It's as simple as threading an M4 nut onto it.

Notes:

• The terms like “Slider part A” or “Slider part C” are the designations I found on the Japanese version of the Olfa's online store. Since I couldn't find the designations for slider parts in other languages, I have used the designations “Slider part A” and “Slider part C”.
  https://store.olfa.co.jp/slider
• If you plan to use it in environments exposed to high temperatures, such as the interior of a car during the peak of summer, we recommend printing it with PC or ABS filament.

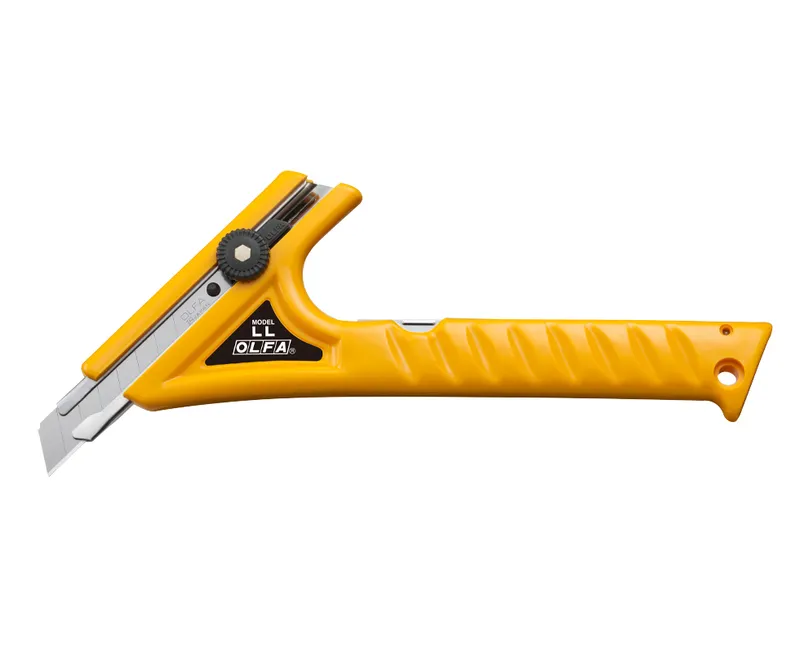

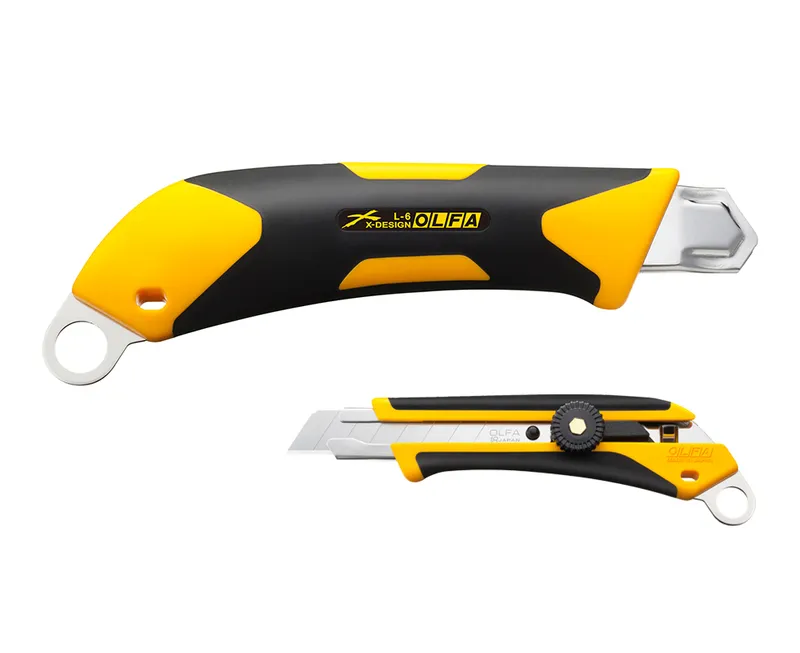

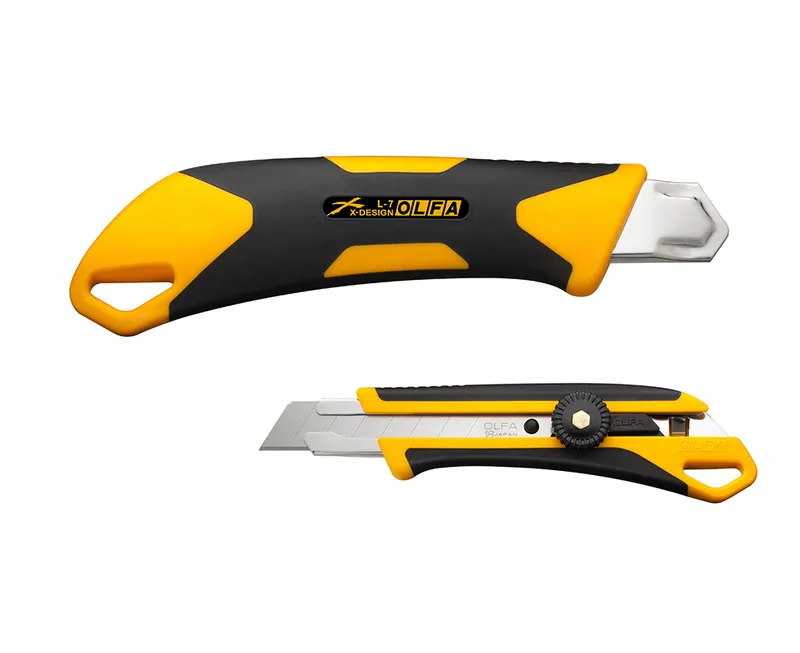

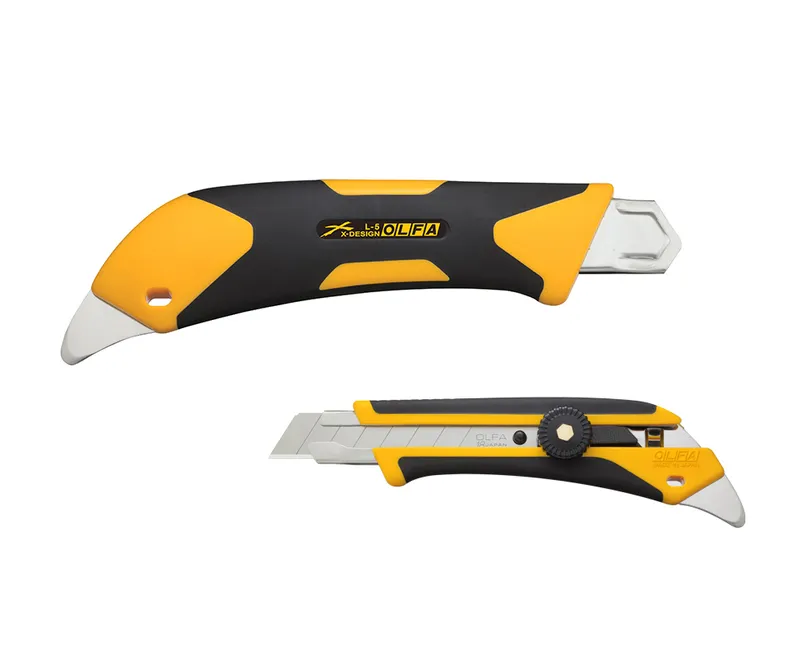

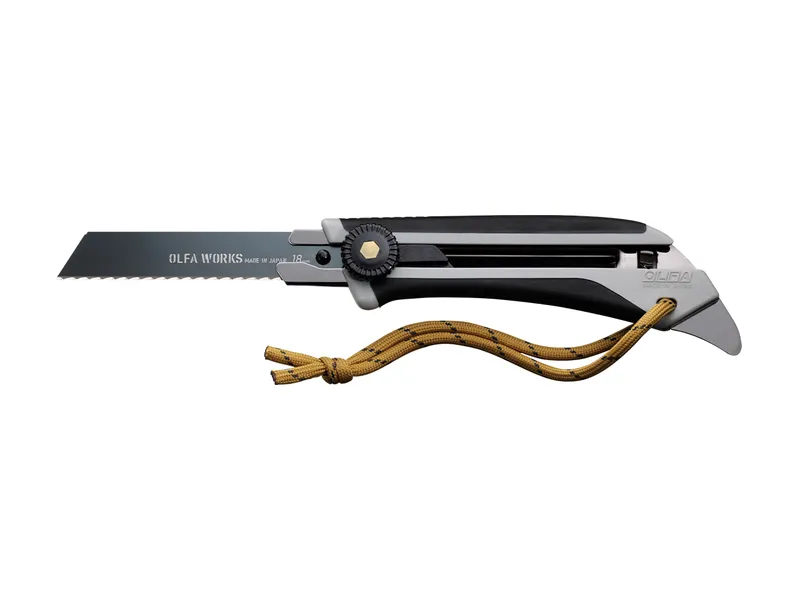

Compatible Knives:

Improved compatibility
