Pros: From what I can tell, good airflow.
Extruder now looks like Mario.
Cons: Screw hole broke during assembly. Could use some better reinforcement.

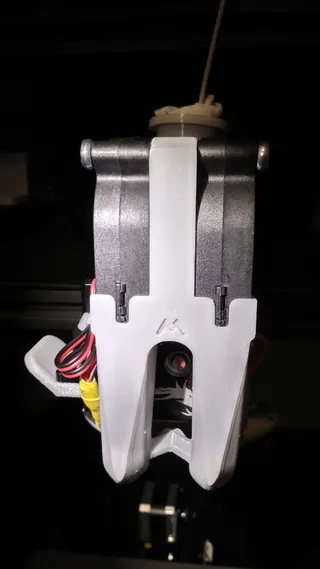

TOR, Cooling Duct for Creality Sprite Extruder, Dual 5015 Fans, Ender 3 S1 Pro
Haven't had the chance yet to print it
Inspired by the taurus model but made from scratch for better printability
62
346
10
3115
updated
February 19, 2024
Makes
Comments
@t3mb3 Nice color! Could you lease tell me which screw hole so i can take a look into it?
Would you mind uploading the step file(s) as well? Like others, I have a few alterations I would like to make and having the step file would make that work considerably easier.
@will_1122302 thank you!
Looks very good. Is it possible for you to share step, please. I would like to remix it to use 2x 4010 blower fans and fit volcano.
@_299462 added

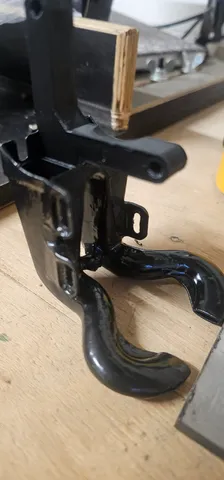

Printed in Polymaker PA-GF. Great design. Any chance I can get the .step so that I can make it work with my CHC hotend? Gonna have to change the angle of the ducts some due to my nozzle being much lower in relation.
@antmanlib What plate used to CR-touch?
After the Taurus model fail to print 3 times, I switched to this model and it printed perfectly with minimal support. Great model (edited)
@QuangTran_482040 happy to be of help
@will_1122302 what plate used to CR-Touch?
Just watched a pretty in depth youtube video on proper duct design and this tics damn near every single box! Looking forward to using it:) Do you by chance have an STEP file you could share? The only thing I'm concerned about is the change in inlet area vs outlet area could be large enough to cause a little bit of fan choking.
Hi, is this compatible with the ceramic hotend?
Nvm, I placed them side by side and it is!
Really Great Design. Thank you!

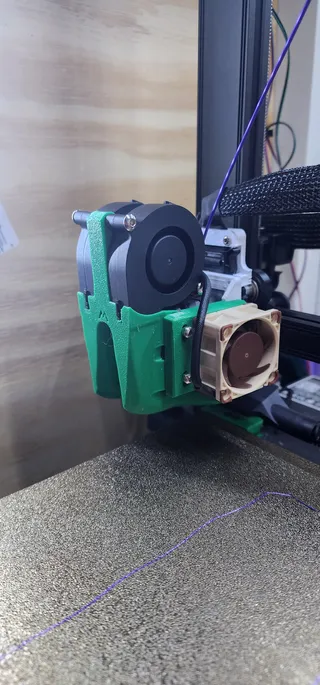

I have Ender-3, changed extruder to Creality Sprite Extruder. This fan mod is awesome! Printed it using petg with no supports
@GregorSabotin_765304 happy to be of help
