Alternative Knobs for FX-4CR Transceiver

Model Notes:

Two versions are available for each design.

The tight fit version is mostly solid and will prove to be a tight fit, while the flex version should have some flex around the shaft for easier installation and removal.

Installation Tips:

• The use of some dry PTFE lube will make installation and removal easier.
• Apply even pressure when installing and removing the knobs to avoid any lateral movement that may damage the encoder.

Dimensions:

Height: 12mm
Diameter: 17mm

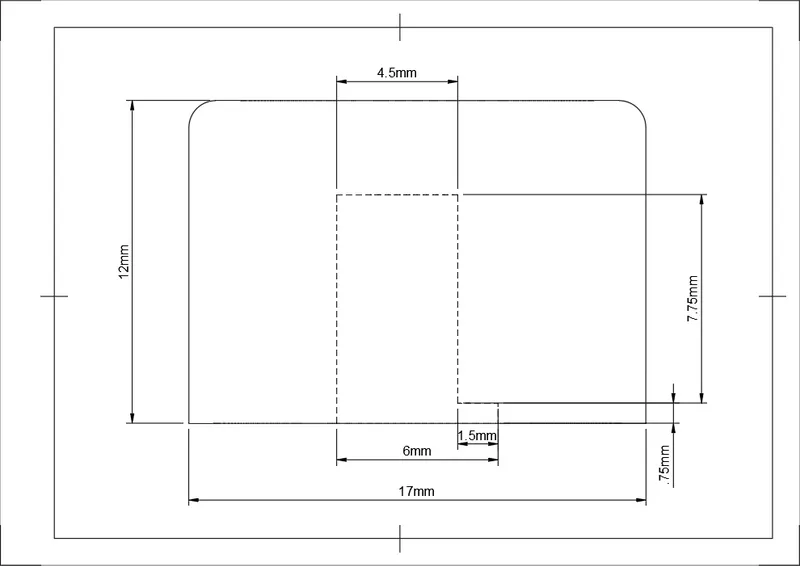

The drawing below provides all the critical dimensions shared across models.
