TS-100 Travelcase

A small box for the TS-100 and Omnifixo. I tried to use as much space as possible to store useful soldering tools.

Features:

• A magnetic and removable soldering iron holder. In addition, the holder has the ability to stabilize small boards for soldering.
• A magnetic top with the Omnifixo
• Extra space for some heated inserts
• You can store a TS-100/101

You need:

• 2 magnets 15mm diameter with a height of 3mm with a hole in the middle
• 2 heat inserts m3
• 2 screws m3
• 1 magnet 5mm diameter with a height of 3mm

Assembly:

The picture reference for bending the wire(1.25mm). That you have to bend. I also added a PDF.

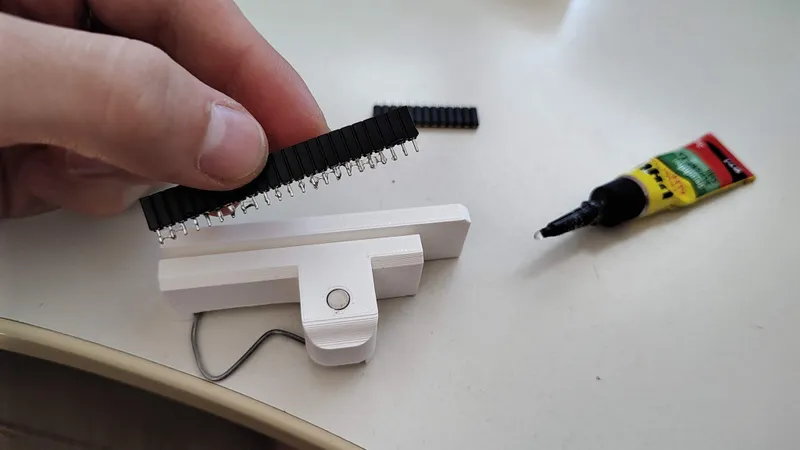

Add glue superglue on the small magnet and the pins.
