Refillable Charcoal / Activated Carbon Filter Replacement for Bambulab X1 / P1S / Upgraded P1P

Update 16.02.2025: The newer X1C/P1S have minimally smaller filter niches (very tight tolerances) - I have now adjusted the size. Now  fits this version the old AND newer X1C/P1S perfectly! 👌😊

It was time to replace my activated carbon filter again and I didn't feel like ordering and waiting again... I found a really nice model/remix for refillable charcoal /activated carbon filter for BambuLab printers at printables (Thanks to Skywarrant! :-) That suited me almost perfectly… But I had to change a few things so that I'm completely satisfied with it! :-)
And I wanted to share the remixed version with you!

Here in video, I show how to change the filter material with the help of this cool box! https://www.instagram.com/p/CyY9BXIr_8r/

My changes:

• The lid has got 2 slits to be able to open it more comfortably - take a look at the pictures!
• The tab on the lid is now more solid, so it can't break now
• scaled down to 98% for better, easy fit.
• main box got carbon logo and lettering ;-)
• extra variant of main box stl with tabs for better adhesion (take this for ABS/ASA! ;-), just cut off these small tabs with the cutter after printing.

Print Instructions:

Quality:

• layer height: 0.2mm

Strength:

• only one wall on top surfaces: off
• only one wall on first layer: off
• wall loops: 5 (only for “Activated_Carbon_Filter_Bottom_with_Tabs.stl”: 9 Walls!)
• top shell layers: 0
• bottom shell layers: 0
• sparce infill density: 30% - 50% (im prefer 50% - see on pictures)
• sparce infill pattern: Triangles
• Infill/wall overlap: 20%
• Infill combination: off

Speed:

• first layer: 10-20mm/s
• first layer infill: 10-20mm/s

Filament: take better ASA/ABS or at least PETG - for better temperature resistance!

Good and safe source for activated carbon (or just search for “Nevermore Carbon”): https://github.com/nevermore3d/Nevermore_Micro

— ! —

Thanks in advance for downloading and please don't forget to like this model!

Take a look at my other very helpful models for X1/P1P/P1S:

 - Powerful magnetic Bambu Lab/Bambulab X1/P1S/P1P (AMS Hub compatble!) Exhaust Fan Muffler / Fan Silencer without Supports/Bridges!

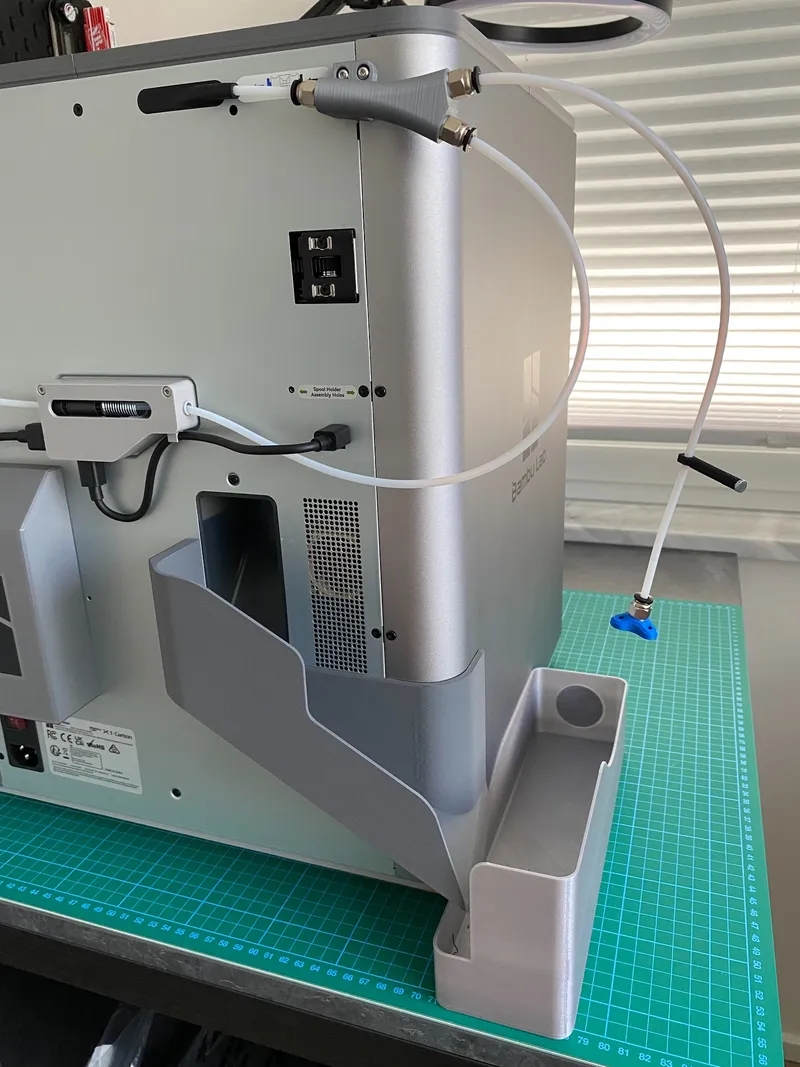

- Your BambuLab X1 /P1P/P1S doesn't have enough space in the back for poop collection? Print this slide for side collection!

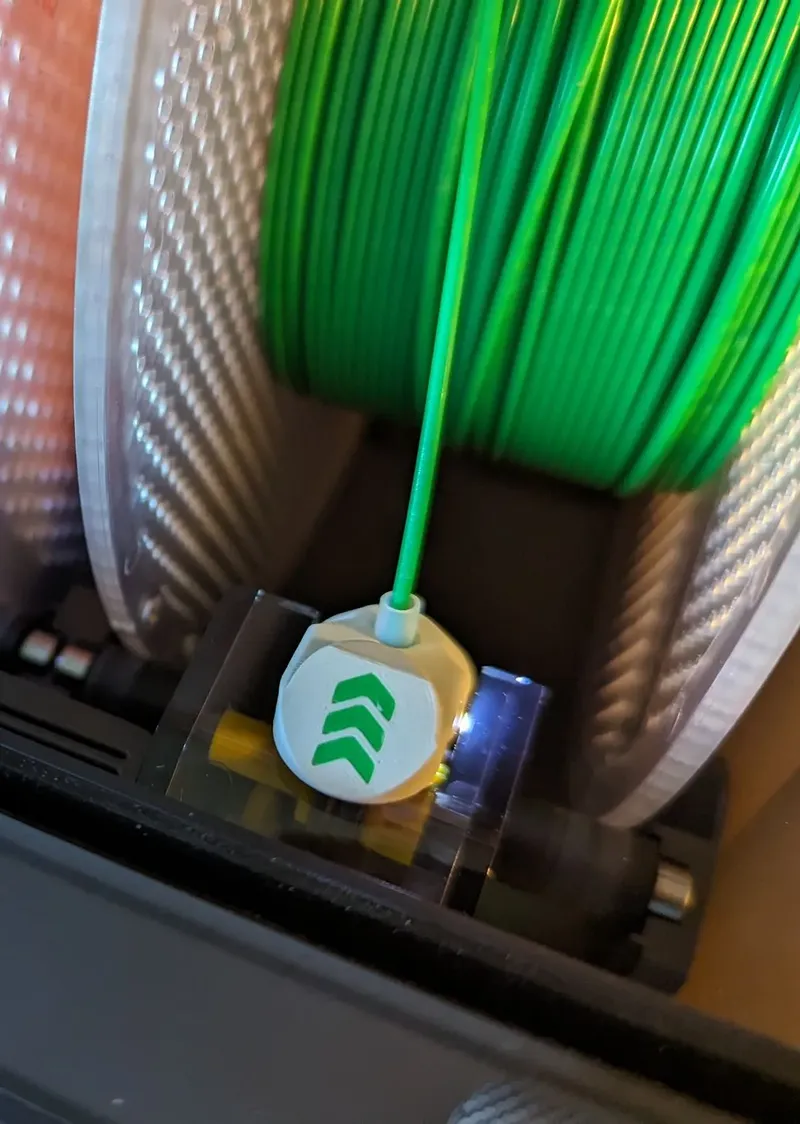

- BambuLab AMS Feeder Button Cover

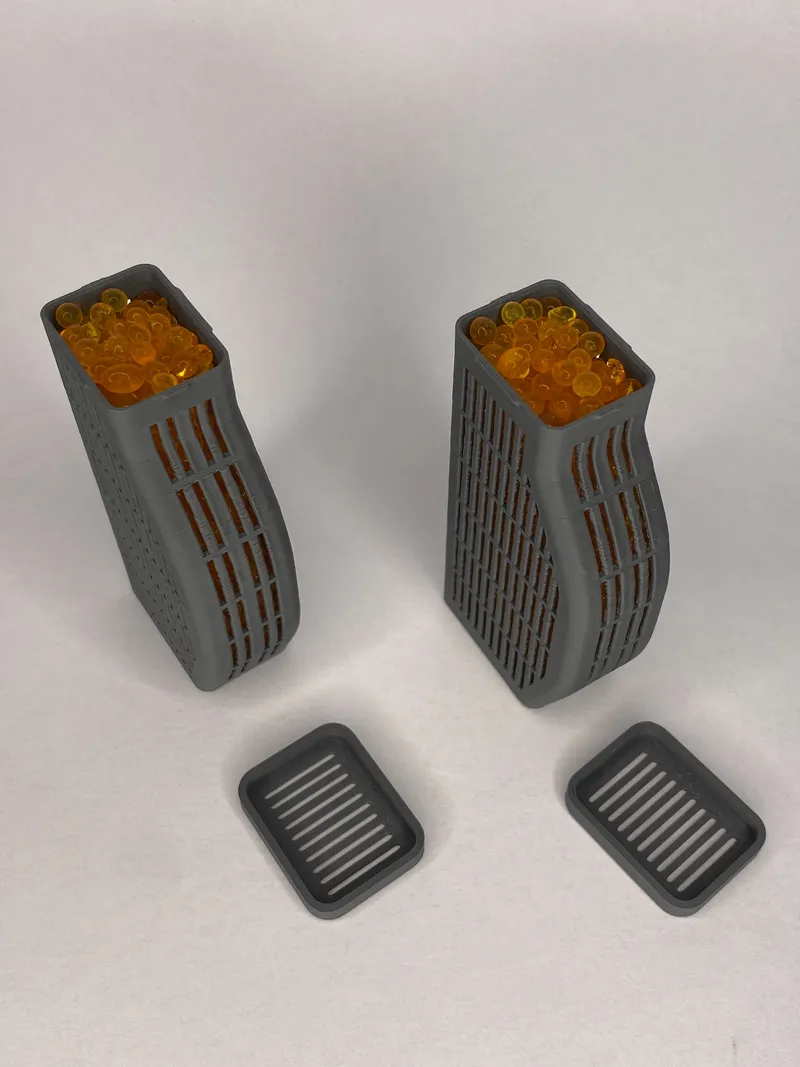

- Slim side silica dryer pod (drybox) with snap fit lids for Bambu Lab AMS

If you like my work and want to support me - please follow me and if you want -  you can buy me a coffee! https://linktr.ee/eds_3d_shop

Thank you for your support and.. happy printing!

Ed ;-)
