IKEA Knopparp couch model in 1:24

A model in 1:24 scale of your favourite small couch from IKEA. Originally I made it for putting it into Gashapon machines that I placed at the lokal hackspace.

For a single couch you need to print everything once except for the leg, which you need two of. I designed and tested it for PLA and 0,2mm layer height.

Disclaimer: the FreeCAD file isn't pretty, as I was just messing around until it worked and didn't bother to make it in a proper way.

It needs assembly, just like the big one. The full manual is in the PDF, but you can use the following:

Assembly

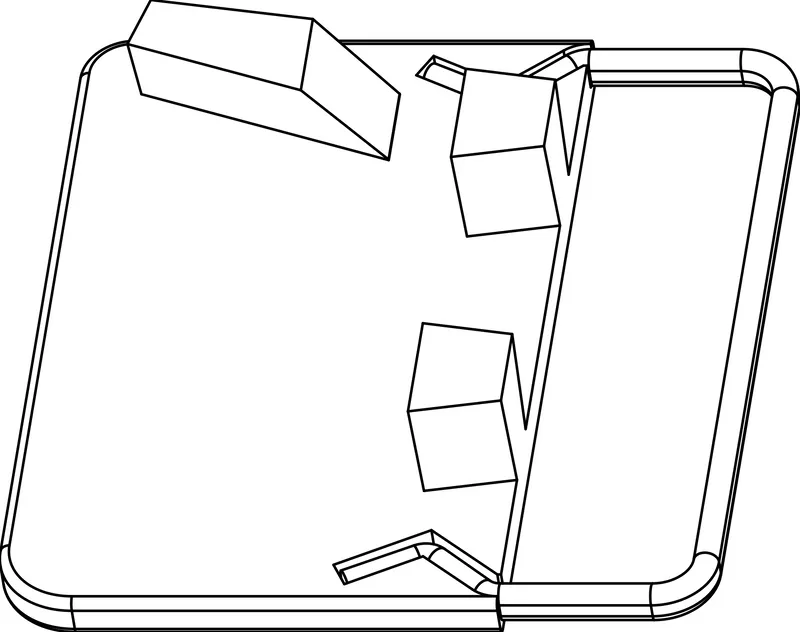

1.

Insert the legs into the armrests.

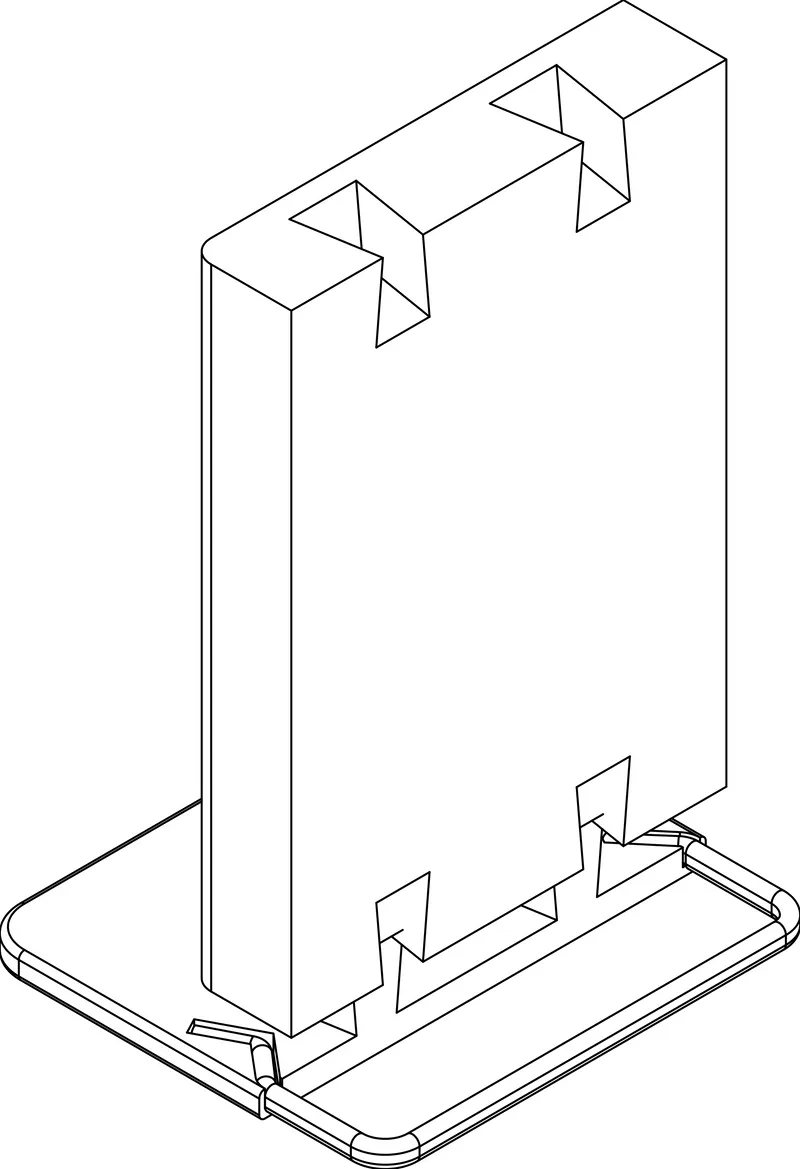

2.

Put the seat on one armrest. Slide it down so it is flush with the armrest.

3.

Repeat for the second armrest.

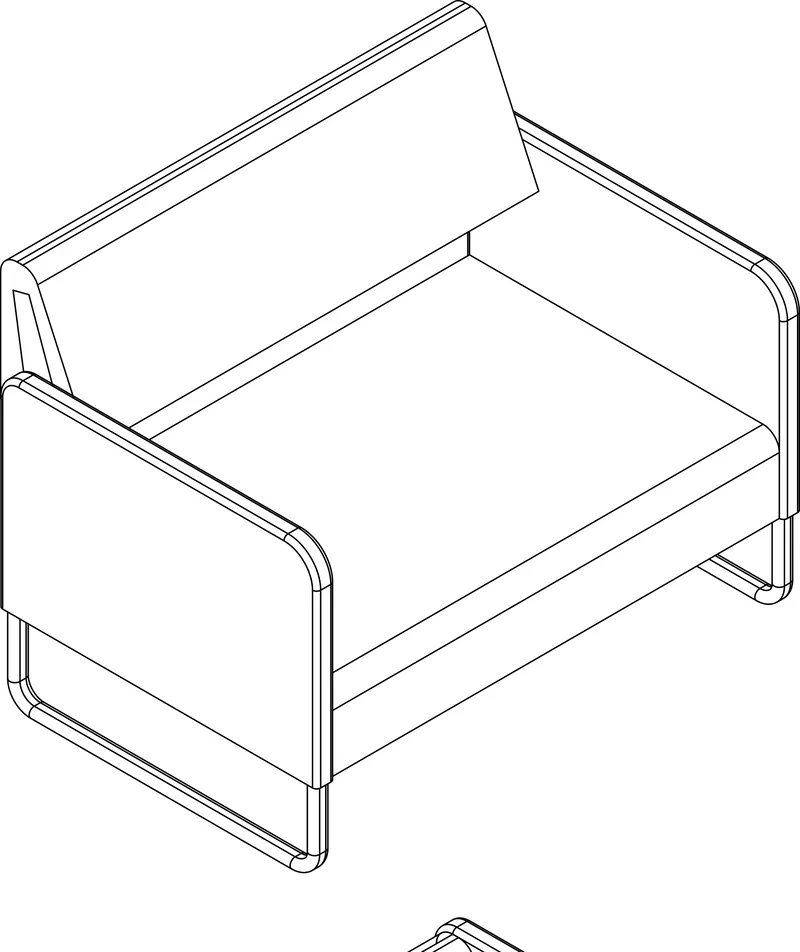

4.

Slide in the backrest from the top.
