Balancing Jig - Wuchtbock

Printed to allow for basic balancing of my motorcycle wheels at home. You can screw them (hole pattern 16-22mm) to a self made balancing stand or just clamp them to your workbench. I screwed them to board that i zip tied to my bikes cases.

The Jigs are designed for 608 bearing and M5x15 screws. The screw holes have a 4mm diameter so i could tapp them.

Use two normal bases for shafts with equal diameter.

Extended base for use with a normal one for a shaft with 15mm and 20mm.

Parts list for a single stand:

• 1x base (print)
• 2x M5 Sleeve (print)
• 2x M5x15
• 2x 608 Bearing

I printed my stands in PETG with a 0.6mm nozzle, 3 walls, 10% infill - they are plenty strong.

Assembly

1. Tap the holes of your stand (optional).
2. Slide a bearing over the “M5 Sleeve”.

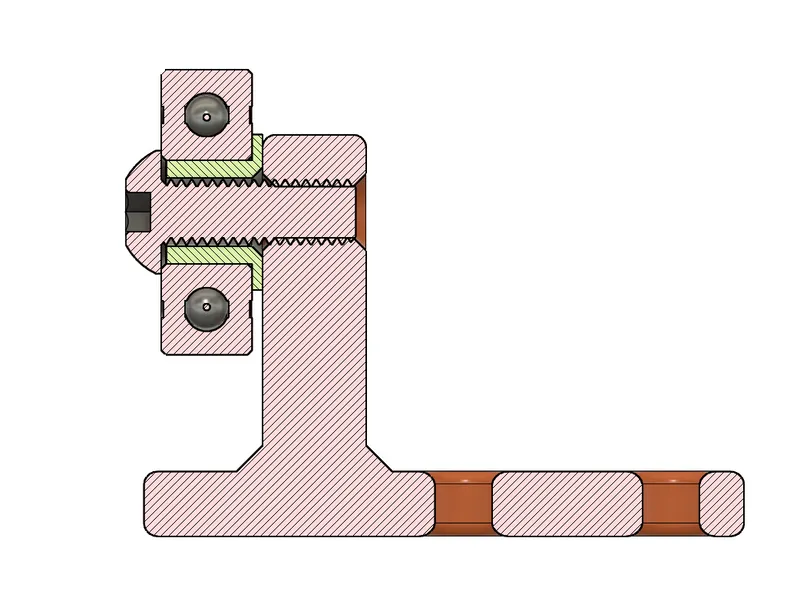

3. Screw the bearing with sleeve to the “Base”
4. Repeat once more.
