Octagonal Pillars Puzzle

1.- Introduction

Since I was a child, I was always attracted to puzzles that can be assembled in different ways, therefore, when I saw this Keythedral game, intermediately I though to create a puzzle.

Few weeks ago I came across 1-49 puzzle, that revived the idea of creating a mix between the two. The square pillars from the Keythedral game became  octagonal pillars. The puzzle was designed in Fusion 360 from scratch.

The goal of the puzzle is to assemble all 13 pieces,  accommodating them in the space between the pillars and corridors that exist in the base.

A hint sheet is included, it can be optionally printed and placed upside down over the base when playing.

From the description of the 1-49 puzzle, it seems it has at least 49 solutions, you are invited to show them.

I may post in the future more hint sheets that can be printed.

Note: The hint sheet is mirrored on purpose for not showing the solution when placed over the base, for discovering the hint, the best is to put it against a source of light, then you can see the lines well.

Storing the hint sheet is in the base with the lines facing the base, therefore the lines stay hidden.

2.- Printing the Model

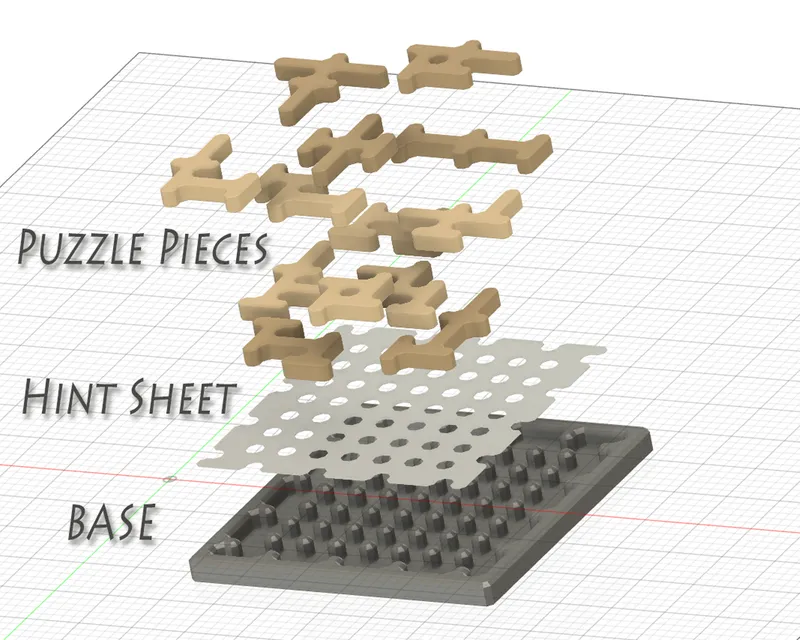

The model is composed by 15 parts which are the base, a hint sheet and 13 pieces.

There are two versions of the pieces, you need to select only one version:

• Regular sized version (under the Puzzle Regular Pieces directory)
  • The regular ones are nicer in my opinion but harder to manipulate when trying to solve the puzzle because they do not stick out from the base/base-pillars.
• Taller sized version (Under the Puzzle Taller Pieces directory)
  • The taller ones are easy to manage when trying to solve the puzzle, they stick out by two millimeters from the base/base-pillars, therefore it is easy to pick them out.

No special requirements exist for printing the parts.  The model was designed that no supports are required.

I printed the parts in eSUN PLA+ using 2 different colors but that is a personal selection, using a color change twice. Feel free to use your imagination for which color to use.

The filament budget for the base/hint and normal sized pieces is:

The above was collected from Prusa Slicer before each print, taking into consideration that I used a 0.4mm nozzle, 0.2 layer height and 15% infill.

Note: The hint sheet is very thin, it is composed only by two 0.2 layers.

3.- A word of Tolerances:

The model includes parts that need to be assembled in different positions, therefore a 0.5mm tolerance was added, hope this tolerance is enough for all kind of printers.

Drop me a note if you need a model with tighter or loose tolerances and I will be happy to model it for you.

4.- Other Puzzles I have designed:

• Quints Dozen Puzzle
• Klarner's Pentacube Puzzle.
• The Haberdasher's Puzzle.
• Jewish Calendar - Puzzle a day.
• Escher's Star Puzzle.
• Mayer's Puzzle - Printed in pieces.
• Mayer's Puzzle - Print in place.

5.- Change Log:

• Upload: 2023-09-01: Initial Version.

6.- Last Words

Please don't forget to ★ Rate and ❤ Like

Post your Makes to earn Prusameters!

Do not hesitate to ask questions, feedback is essential to making better models.

You are kindly invited to follow me to get updated when upload new models.

Happy printing & Greetings from the Galilee.

Hope it was not TL;DR
