HYPERFORMA_Floatwheel ADV-ADVPro Power Button plug cover

This design helps keep dust from getting inside the Floatwheel's Power Button socket.

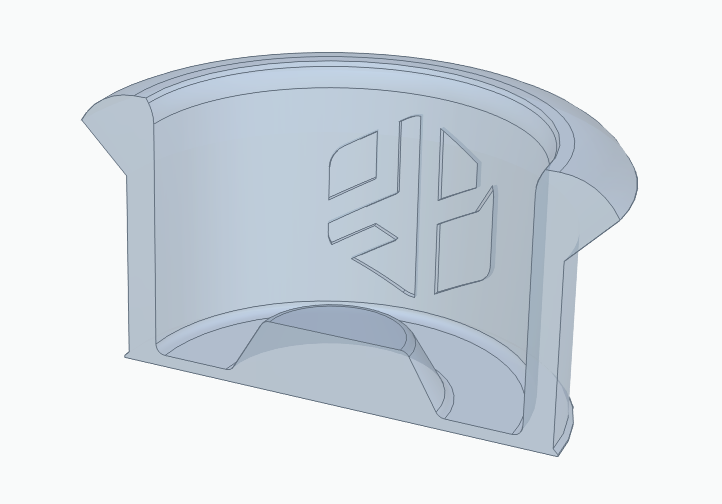

The design is perfectly integrated inside the rails and leaves just under 1 mm gap between cover and button, it should also be compatible with the original Floatwheel rail guards (not tested).

The design is perfectly integrated inside the rails and leaves just under 1 mm gap between cover and button.

The lower thickness is reduced to allow greater elastic movement so as to have a better perception of the button with finger

Enjoy it!

RECOMMENDED MATERIAL: TPU of hardness 90A, better if transparent/white for backlight

No supports needed!

UPDATE 6/12/2023: made a specific design for ADV Pro, the rails in this case have a triangular pocket about 2.3mm deep, for this reason the part needs to be shorter

 UPDATE 05/03/2024: now tho PRO part is modeled directly on the original pro rail CAD provided by Tony. Boths designs work great also with HYPERFORMA Railguards and original Floatwheel Railguards.

UPDATE 26/01/2026: The thickness of the lower wall has been modified to improve the flexibility of the model, resulting in better tactile feedback. At the same time, the size of the central cone has been reduced to better focus finger pressure on the center of the button.

STANDARD RAILS:

PRO RAILS:
