V0.X Upper Back Pannel Bowden Tube Hole

A hole added to the V0.2 upper back panel allowing for a Bowden tube with an outer diameter of 4.25 to fit within it.
2
15
0
254
updated August 26, 2023

Description

PDF

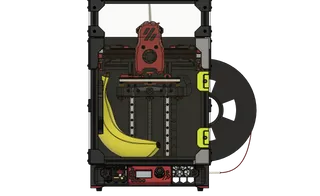

This mod is a replacement for the upper panel on the Voron v0 series of printers. I made it to be used in conjunction with another mod I made that moves the spool holder to the side of the printer. This mod creates less friction within the Bowden tube so filament can travel smother. I recommend to have the Bowden tube come out of the hole and be directly above the filament spool.

The STL file included can be printed on a printer that has a bed size of about 220 x 80. There is a STEP file included for remixes.
