Original design files for EASY 13. Includes STEP files and Fusion 360 archive files.
Your funds support the creator's further activity.
Choose one of the options to download the model:
$3 /month
$5
135
1
9098
updated October 1, 2024

Makes

Comments

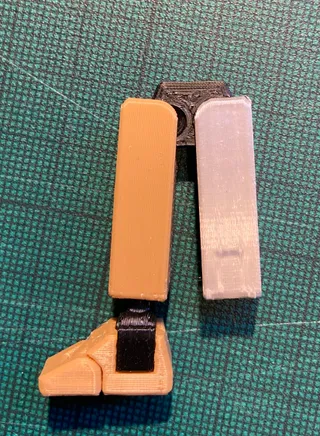

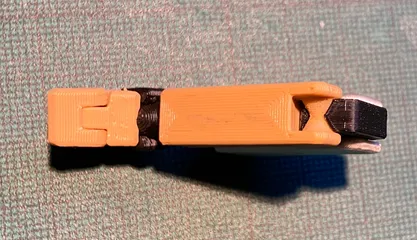

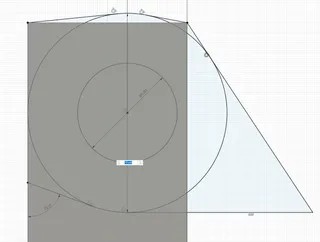

I found that you only need to change one number, in one sketch, to make the joints move perfectly.

I changed it way too big (from 7mm to 10), just to be sure for testing purposes, and it was immediately clear that, that's needed. But I guess maybe even making the diameter of the outer Boolean ring to like 8mm might do the trick. (edit: yep 8 is perfect)

I mean I really don't see any reason to make it so tight that this might ever be an issue..
Doin a remix of it seems like I would be stepping on your work tbh.

Maybe you could just to like update your model at some point with larger clearances?

I mean I haven't looked at the other body parts but seems like just the "skin" parts need one number change.

Anyway thanks for the great model! It is clear that it's very well thought through!

Looking forward to being able to do similar poses as I did with the lucky 13! (edited)

@KasparKuldkep_393354 Thanks for your feedback. I'll look at increasing the clearance next time I update the files.

You're totally welcome to remix and post the parts (you even paid for the privilege). I'd only feel like you were stepping on my work if you re-uploaded the entire model. Uploading just the parts that you changed is totally welcome and encouraged. All my models have tons of remixes from people improving the parts to work better for them. :)
