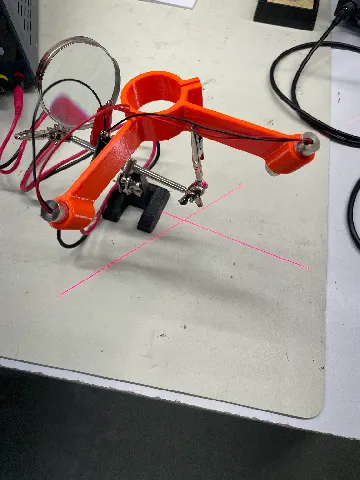

A 3D printed CNC Plasma Laser Guide for my Duramax machine torch. I'm using 9mm diameter lasers like this: https://www.amazon.com/gp/product/B00ARBPI5Y/

Designed for lasers that throw a 45 degree line/beam. Should be placed roughly 6 inches above the surface.

I have also created a version for 12mm lasers (per user request).

No supports needed, recommend printing in PC, ASA, or PETG.
