Mini Desktop Trash Can

Update 15.10.2023

New Top - less support required

New Lid - bigger hole for the screw and more weight that it closes itself (should be printed with 100% infill) - 2 Versions available one has a recess for an M10 nut with a wrench size of 17mm

Size: diameter 100mm height about 170mm

Orientation of the parts see below!

Settings:

• 0.20mm Standard
• support needed
• PLA / PETG
• (Drill out the holes in the lid with a 3mm / 3.5mm drill no longer necessary with the new lid)

Hardware:

2x M3 x 16mm

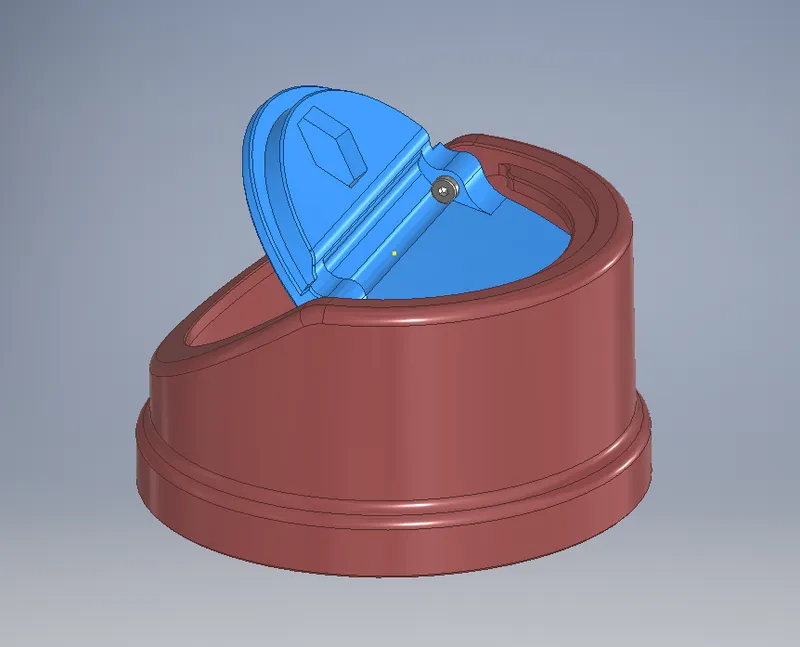

Orientation for assembling

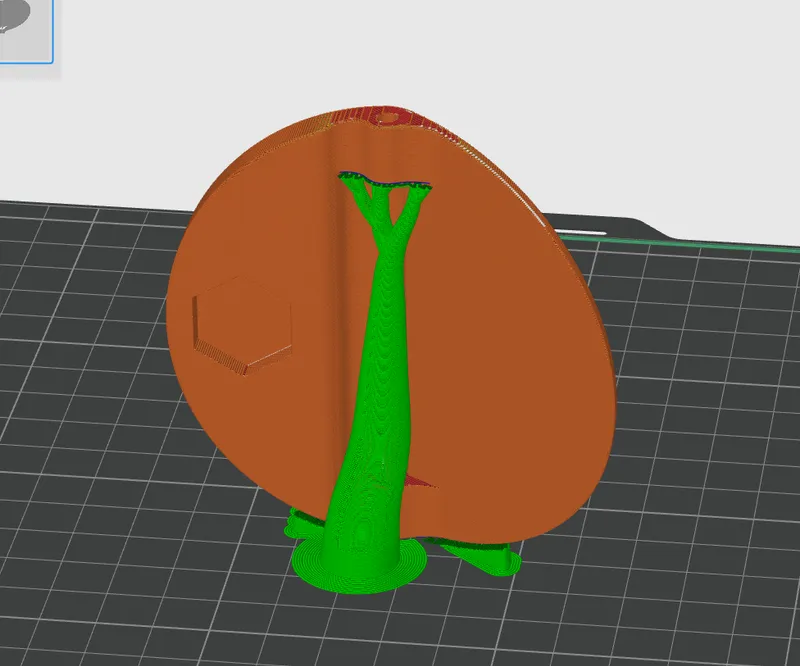

                                                   Orientation new Lid with auto tree support

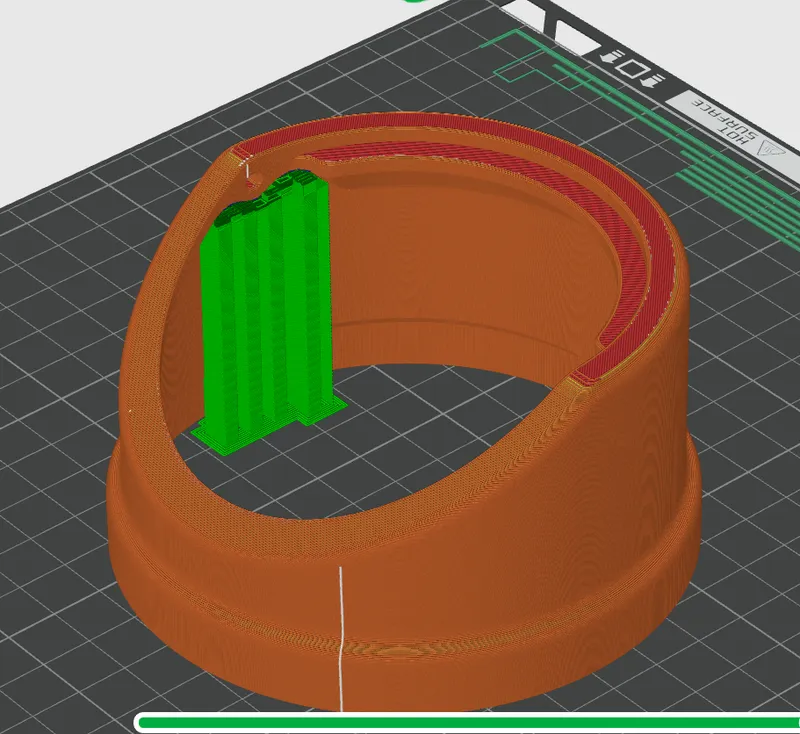

                                                 I used a support blocker for the holes

                                                      support only necessary under the holes
