{"data":{"model":{"id":"560670","slug":"anycubic-kobra-neo-adxl345-mounts","name":"Anycubic Kobra Neo ADXL345 mounts","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

ADXL345 X-Axis and Y axis mounts for the Kobra Neo

There's another mount by Applepie2 but it doesn't fit the accelerometer I have which I think seems more commonly available (e.g. https://www.amazon.co.uk/dp/B09M6MSF7J)..

There are screw mounts for the board, but the fit is tight so that friction fit is plenty solid enough (maybe sand the edges of your board down if it's too tight).

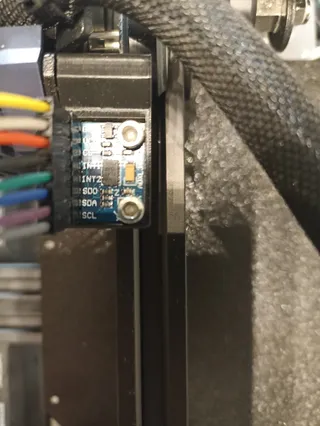

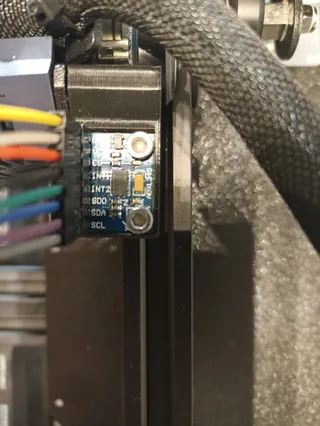

The X axis mount is designed with a kind of hook to grip the top screw head, then only the single screw below is needed to attach it to the printhead.

The Y axis mount you just print on the bed, and keep your bed warm so it sticks.

More info on measuring resonances here: https://www.klipper3d.org/Measuring_Resonances.html

Print Settings

Printer Brand:

Anycubic

Printer:

Kobra

Resolution:

0.2mm

Infill:

20%

Filament: Elegoo PLA+ Black

Notes:

Tree supports work well for the X axis mount, needed for the overhang.

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-09-23T22:16:57.724540+00:00","firstPublish":"2023-08-22T17:47:03.168479+00:00","datePublished":"2023-09-23T22:16:57.709315+00:00","dateCreatedThingiverse":"2023-08-19T12:32:34+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Mount for the smaller ADXL345 accelerometers that are available.","likesCount":19,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":109,"displayCount":987,"filesCount":2,"privateCollectionsCount":11,"publicCollectionsCount":13,"pdfFilePath":"media/prints/560670/pdfs/560670-anycubic-kobra-neo-adxl345-mounts-237ab4ca-250b-4d07-bc6d-eb20d62cebe0.pdf","commentCount":1,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2133744","filePath":"media/prints/560670/images/4494126_b4d0678d-677a-4b53-9460-c06e559dcf6e/large_display_0735b1a2-6a9b-4888-8056-1f764a604e35_560670.png","rotation":0,"imageHash":"LwgSBYDWuIh2iIePhZZ3iCmboMII","imageWidth":1024,"imageHeight":797,"__typename":"PrintImageType"},"images":[{"id":"2133744","filePath":"media/prints/560670/images/4494126_b4d0678d-677a-4b53-9460-c06e559dcf6e/large_display_0735b1a2-6a9b-4888-8056-1f764a604e35_560670.png","rotation":0,"imageHash":"LwgSBYDWuIh2iIePhZZ3iCmboMII","imageWidth":1024,"imageHeight":797,"__typename":"PrintImageType"},{"id":"2133745","filePath":"media/prints/560670/images/4494128_feba7ce8-b208-4f76-9960-a73086eec07c/large_display_fc29b3ea-93bf-4e7d-b8bf-4075d487065c_560670.jpg","rotation":0,"imageHash":"GggGDYLyiJpZdXpV1Xmri4CbCFk7","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"2133746","filePath":"media/prints/560670/images/4494129_500bb855-5c32-45fc-b1dd-b11e27ab7b09/large_display_9bb722b2-a789-4809-ae48-606d12f8e4d4_560670.jpg","rotation":0,"imageHash":"2AcOFYLKh4dvZphbdpeIh/iFp29n","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"2133749","filePath":"media/prints/560670/images/4494127_05e50c43-a531-4a03-8ddb-9e74660e0c82/large_display_988ae201-4228-4d60-b84f-126235a3c388_560670.png","rotation":0,"imageHash":"5tYJJYbkiomfdoeNdXeIiPOJP474","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"imagesCount":4,"tags":[{"name":"accelerometer","id":"3417","__typename":"TagType"},{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"adxl345","id":"37207","__typename":"TagType"},{"name":"kobraneo","id":"131108","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:6176869","filesType":null,"previewFile":{"id":"2380465","filePreviewPath":"media/prints/560670/stls/4494130_8649bc0c-563f-4b06-b3fa-e77063b894d7/anycubic_kobra_neo_adxl345_x-axis_mount_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"1127871","handle":"AndrewHarris_1127871","verified":false,"dateVerified":null,"publicUsername":"Andrew Harrison","avatarFilePath":"media/auth/c8d26e80-45c0-48e2-814c-e0fc2d81dce0.jpg","badgesProfileLevel":{"profileLevel":6,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"highlightedModels":{"models":[{"id":"560670","name":"Anycubic Kobra Neo ADXL345 mounts","slug":"anycubic-kobra-neo-adxl345-mounts","ratingAvg":"5.0000000000","likesCount":19,"liked":null,"datePublished":"2023-09-23T22:16:57.709315+00:00","dateFeatured":null,"firstPublish":"2023-08-22T17:47:03.168479+00:00","downloadCount":109,"mmu":false,"category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-09-23T22:16:57.724540+00:00","image":{"id":"2133744","filePath":"media/prints/560670/images/4494126_b4d0678d-677a-4b53-9460-c06e559dcf6e/large_display_0735b1a2-6a9b-4888-8056-1f764a604e35_560670.png","rotation":0,"imageHash":"LwgSBYDWuIh2iIePhZZ3iCmboMII","imageWidth":1024,"imageHeight":797,"__typename":"PrintImageType"},"imagesCount":4,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1127871","handle":"AndrewHarris_1127871","verified":false,"dateVerified":null,"publicUsername":"Andrew Harrison","avatarFilePath":"media/auth/c8d26e80-45c0-48e2-814c-e0fc2d81dce0.jpg","badgesProfileLevel":{"profileLevel":6,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"}],"featured":false,"__typename":"HighlightedModelsType"},"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

Anycubic Kobra Neo ADXL345 mounts
