EDM Vat Alignment Brackets
A set of clamping brackets for mounting an EDM vat on top of a 3D printer bed
6
27
0
186
updated September 4, 2023
Description

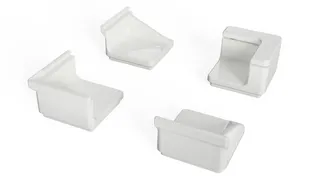

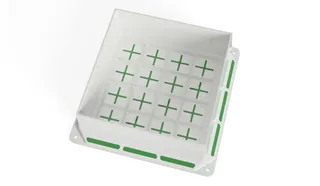

PDFA set of clamping brackets for mounting an EDM vat on top of a rectangular 3D printer bed. These are currently sized to fit the bed on a Creality CR10 V3 printer.
Assembly requires 8-32 screws (McMaster 92949A198) and heat-set inserts (McMaster 93365A140).
A parametric Fusion 360 file is provided to allow the bed size and vat position to be adjusted.
