IDC 10 pin Male Box Header Frame 2x5 pin Connector

This 3D-printed IDC box header frame is designed to convert a regular 2-row pin header into an IDC box header. This is a useful solution for those who need to replace an IDC box header but cannot find one in stock, or for those who want to create a custom IDC box header for their specific application.

Features

• Converts a regular 2-row pin header into an IDC box header
• Ensures correct orientation of the power cord tab
• Easy to assemble

Benefits

• Replace a broken or missing IDC box header without having to buy a new one
• Create a custom IDC box header for your specific needs

Applications

• Desktop synthesizers
• Eurorack modules
• Other electronic devices that use IDC box headers

How to Use

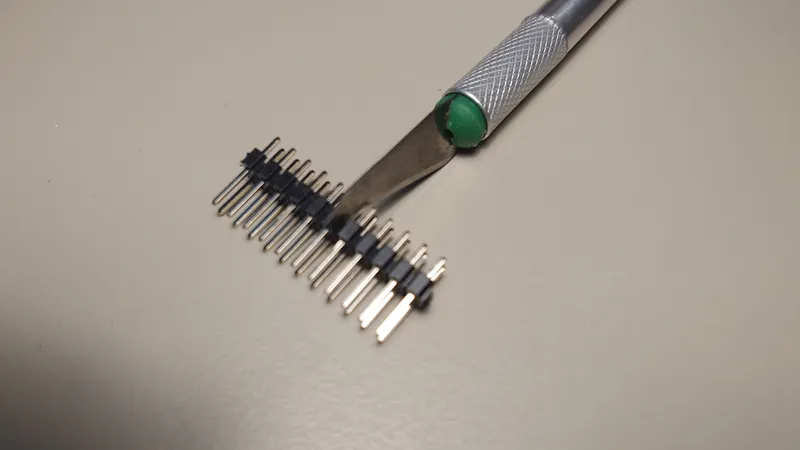

1. Cut 5 columns of 2-pin row header.
2. Insert the 2-pin row header into the frame and align the pins into the box.
3. Stick the frame and the 2-pin row header together with superglue.

Tips

• Be careful when cutting the 2-pin row header to avoid cutting yourself.
• Use a strong superglue to ensure that the frame and the 2-pin row header are securely bonded.
• Make sure that the frame is printed from a heat-resistant material, such as PLA  HT, PETG or ABS, if it will be used in a high-temperature environment.

Support me

"If you dig what I'm creating and want to support the journey, consider fueling my creativity with a virtual coffee! Your support goes a long way in helping me continue pushing the boundaries of 3D printables. Want to Buy Me a Coffee?

Enjoy this IDC header frame and let me know, when you make one for yourself!

Designed with Autodesk Fusion 360 Personal
