Toilet Paper Holder - print in place/quick load and release

A print in place toilet paper holder with quick release and load functionality. It also has spring action so that the leavers return to the original position. I could be wall mounted with some m3 screws or use strong double sided adhesive. Also, print 2 Springs.

Print settings:

• layer height: 0.25 (it should work with other layer heights as well)
• supports: none
• There is some bridging. Try to slow down print speeds for the bridging section in your slicer.

Print in this orientation:

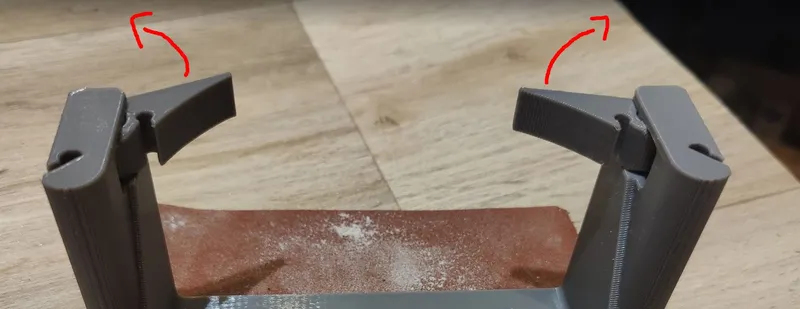

Once off the build plate, use a bit of force to get the arms moving in the direction shown:

moves the arms about a few times and use some lubrication id you have some handy.

If you plan to use double sided adhesive I would recommend to sand down the back side of the holder so that the tape grips well to the plastic (Make sure to wipe down after sanding)

Mount the holder in the desired location and insert the strings as shown:
