JBL GO3 bracket with multiple mounting options

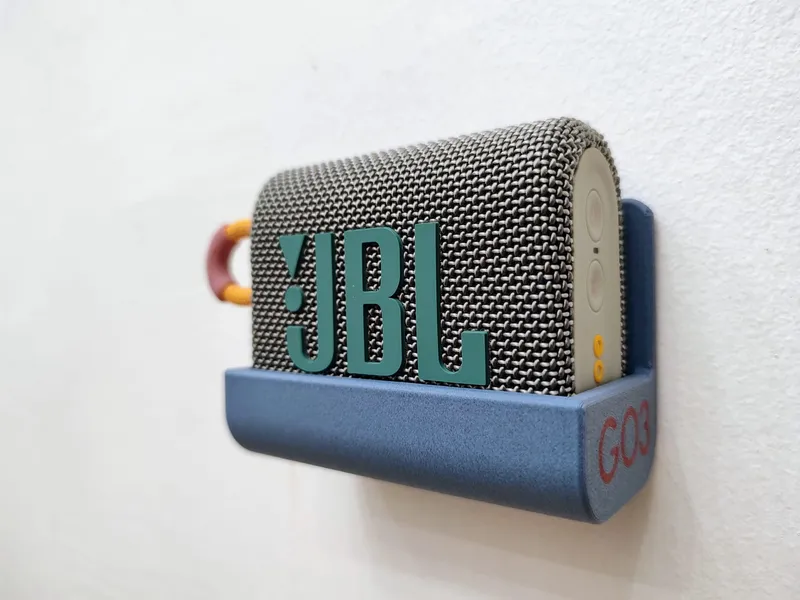

I bought a JBL GO3 Bluetooth speaker for my worktable to play music from my laptop while working. Did not want it to be sitting on the tabletop with all my tools, so I designed a bracket that I can use the 3M command tapes and mount to the wall.

In addition, I also designed 2 holes to attach printed hooks for mounting on the Ikea Skadis pegboard.  These holes are M3 and 40mm apart, so different hook systems can be designed to fit different pegboards.

BOM

• M3x6mm BHCS - 2pcs (For Skadis)
• 3M Command tapes - 2pcs (for wall mounting with double-sided tape)

Dual colour print, with the words “GO3” for the first 2 layers. So there are only 2 filament changes. If you want indented words only, Just delete the letterings away.

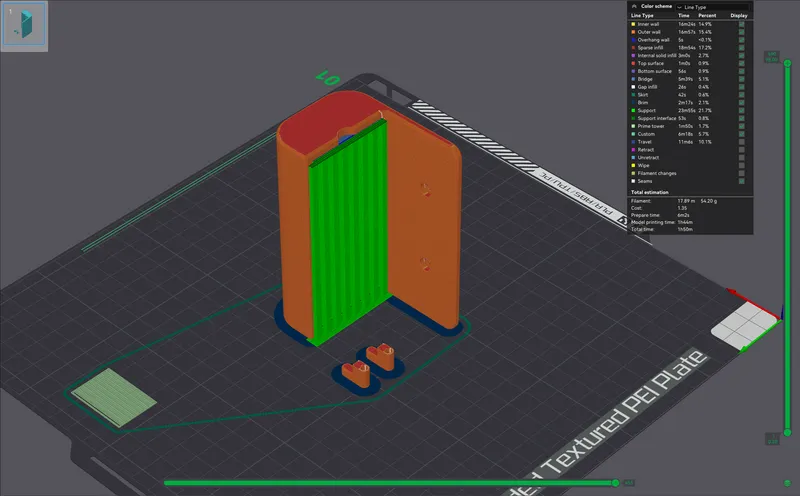

Supports are needed for the prints. Orientation and support are prepared on the 3mf.

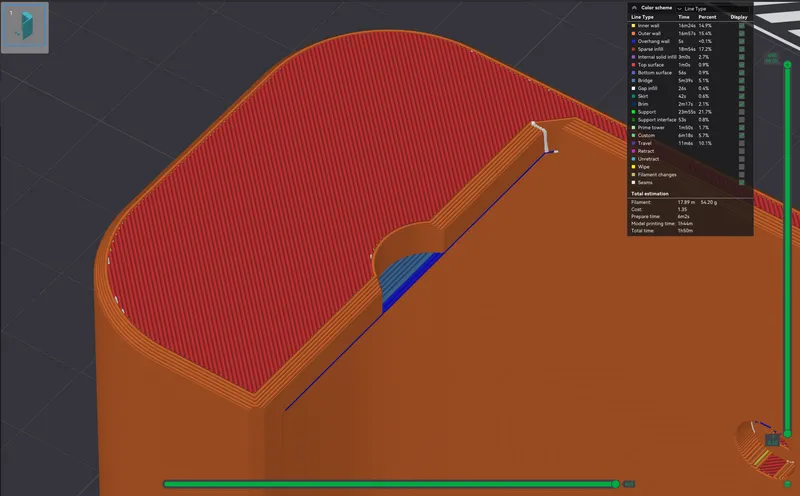

I have included a 0.2mm bridging to improve the print for the curve surface. You can snip it off during clean-up when the supports are removed.

To date, my designs are free to download and use. There are no Club, Patreon or OnlyFan (hahaha). If you like them and want to contribute to my coffee addiction & help fund the filaments I need for prototyping, a donation of $5-$10 to Ko-fi or paypal.me will be greatly appreciated.

Caveat

As with all my designs, it may and may not work for you. So print and install at your own discretion.
