Sparrow V2 - headless electric travel guitar

For info on parts look at the V1 design: https://www.printables.com/model/526461-sparrow-electric-travel-guitar

This is an improved version of my previous work, with the following changes:

• Different printing orientation for body parts allowing more rounded edges and support free prints, also nicer surface finish.
• Arm cutout for more ergonomic playing experience.
• Neck and bridge are recessed into the body more thus making the instrument even thinner, and allowing the pickups to be closer to the strings.
• Magnetic openable legrest for playing without a strap.
• Output jack was moved to the left side, and acts as a strap button as well.
• Metal backplate thickness reduced to 3mm as the previous 5mm was probably overkill, and made it real heavy.
• Many tolerance issues fixed, dimensions adjusted.

Printing instructions are added as notes to each part file.

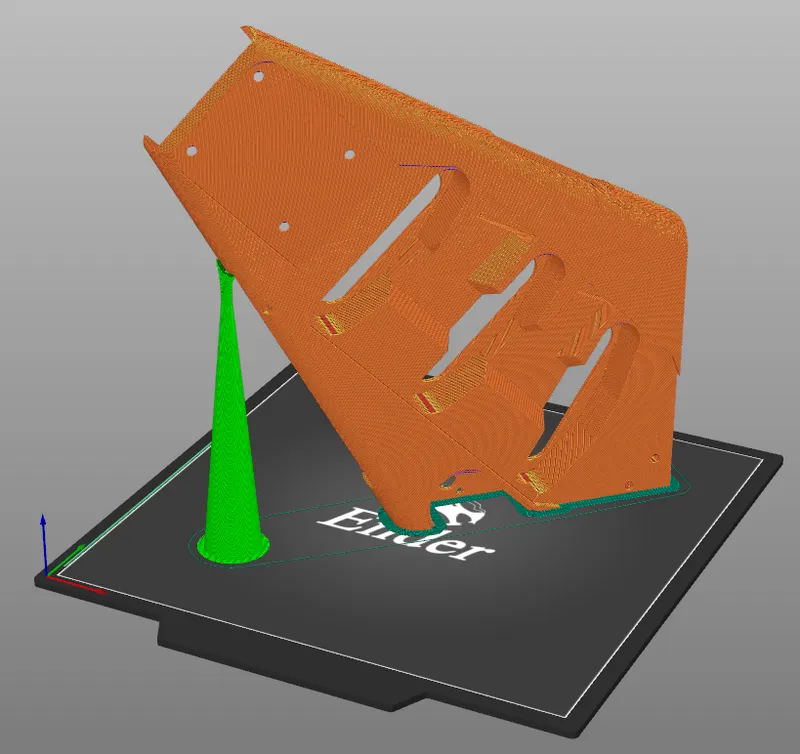

• Printing the main body should be done similar to this:

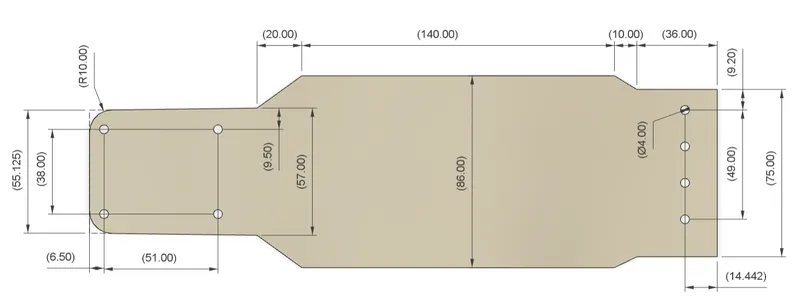

• Here is a basic drawing for the 3mm backplate. For more accurate dimensions or cnc machining, look for the .f3d file provided.

• For the legrest, insert 6x2 round magnets into both the body and the legrest.
