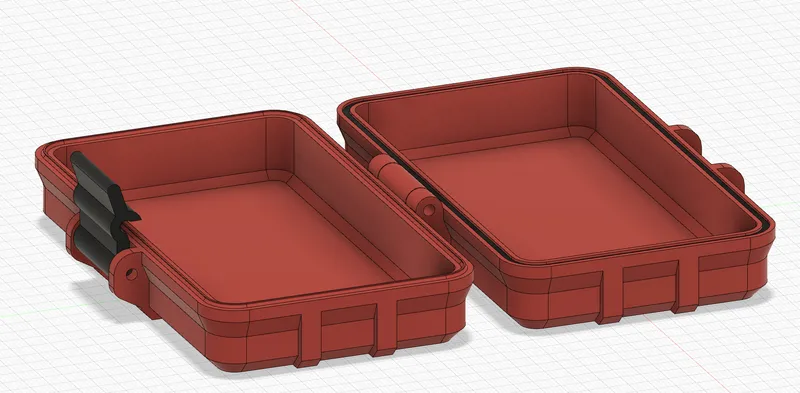

Low profile Rugged Box (Parametric) - Single latch version included

This parametric box is based on the excellent work from Whity - go check his version !

I needed to make some box with a very low height profile and the original model struggled with the constant 45deg. I made a version that automatically adjust the angle (to some limits) to allow a slightly lower height profile. This remix allow to achieve 15mm on the bottom and 12mm on the lid (inner space). The latch dimension will also slightly adjust in function the height.

Note that the angle might change from the basic 45deg and requires support when the box or lid is set with a small height.

A single match version has also been created for the small box you might want to create. Note that the guidance is reduced so the hinge has more play in it.

Remix

Feel free to share your own remix!

Here are mine:

• Polar H10 (heart rate belt) box
