NEMA GX16 Cover

0 reviews

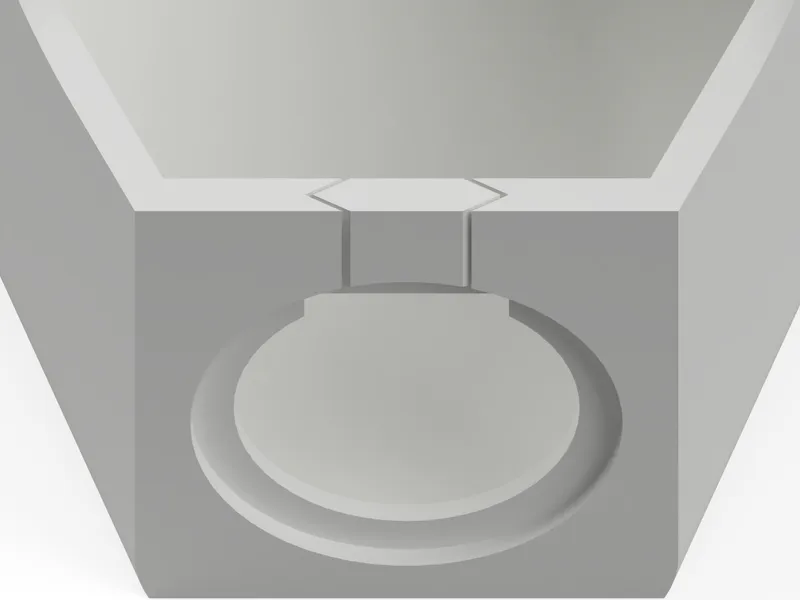

NEMA stepper motor cover. Protects rear axis and fixed GX16 plug.
4
35
0
230
updated August 10, 2023

Description

PDF

Model currently fits NEMA24 (59.5mm face). STEP file included for remixes.

Features:

  • Support-less printing
  • Mulitple screw bores for fixing to different NEMA models
  • Break-away cable slot for easy installation

The break-away cable slot can be snapped off after printing, to allow for a pre-soldered Stepper Motor and GX16 plug to be passed through, and the breakaway piece slotted back in.

Tags

steppercncnemagx16

Model origin

The author marked this model as their own original creation.
