DHT11 Clip On Case For The Prusa I3 Mk3s+

DHT11 Clip-On Case For The Prusa I3 Mk3s+

I added Octoprint to my setup, along with a printer enclosure.  I decided I wanted to monitor the temperature and humidity as well of my enclosure and have it on the Octoprint UI. To do this I used the Enclosure plugin which can be downloaded using the links below. I also bought the DHT11 breakout board sensor too. The case is quite simple, it just needs printed and then assembled onto the frame of the printer.

Useful Links

• DHT11
• DHT11 GrabCad Model
• Octoprint
• Enclosure Octoprint Plugin

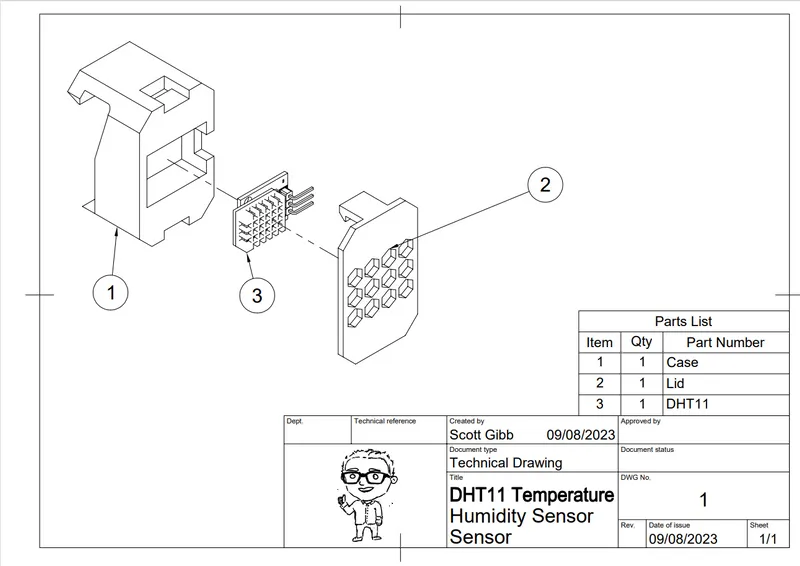

Technical Drawing

Exploded View

Enclosure Plugin Settings
