Evantis 5015(M) Tool head

Last Update: 9/23/2023

Update - Currently working on a V2 of the toolhead.

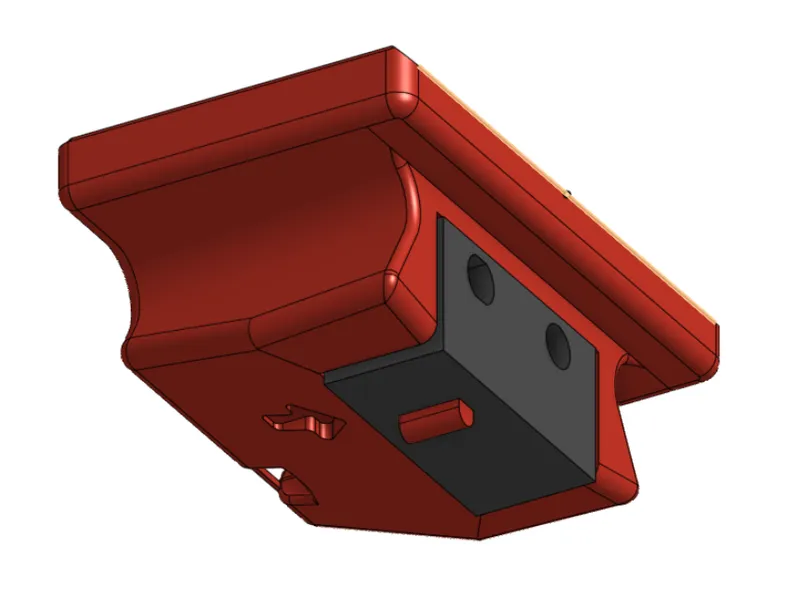

WIP - Still working on the front shroud design that's pictured.

Current Issues - Nothing report as of now.

Recent Changes/Updates:  Updated V2 ducts improve cooling if you are experiencing any cooling issues, please reach out so I can solve it. Added integrated microswitch x-endstop carriages. Fixed Copperhead Mount holes. Thank you!

Wait! Before proceeding do you want more do you need every mm in your forward y direction? If so, please proceed here:

Micro Mantis S Toolhead by Sir_Wash | Download free STL model | Printables.com

Will this tool head work on my machine?

This toolhead design is primary based off the mantis toolhead so any printer that can use the normal mantis toolhead should be able to use this one if that's not the case let me know and I can try to help make support possible. However, this was designed specifically for the Zero G Mercury 1.1.5.

Questions?

Please leave a comment or join the Zero G discord and head to the micro mantis page in the community section.

Toolhead Component Compatibility List:

Printer Compatibility

Mercury Zero G 1.1.5

Voron 2.4/Trident

Carriage Compatibility

MGN12(H/C)

MGN9(H/C) *9C not recommended but supported.

Hot End Compatibility

Rapido HF & UHF

Dragon

Dragonfly BMO

Revo Voron

Revo Micro

Revo Six/V6

Mosquito

Copperhead

Bambu

Dropeffect XG

Goliath AIR

Nova

Crazy Volcano

Extruder Compatibility

Sherpa Mini

Sherpa Micro

Orbiter V2.0

Orbiter V1.5

Vz-Hextrudort

LGX-Lite

LGX

Phaetus Apus

Bowden

Probe Compatibility

!!!Before you turn your printer on, please verify that the probe is higher than your hot end when it is in its stowed position.!!!

Magprobe

*Install like below to get the appox. x,y offsets found below may still need to adjust.

                                                                                                                                                        Magprobe           XL Magprobe

0,0 origin towards the back right side - X,Y Offset = -2.3, -39.8

0,0 origin towards the front left side - X,Y Offset = 2.3, 39.8

                                                        Probe Mounts Compatibility Tables

Klickly

*Install like below to get the appox. x,y offsets found below may still need to adjust.

                                                                                                      Normal Klickly                                      Klickly XXL

0,0 origin towards the back right side - X,Y Offset = 1.6, -29

0,0 origin towards the front left side - X,Y Offset = -1.6, 29

                                                           Probe Mounts Compatibility Tables

Un-Klickly

*Install like below to get the appox. x,y offsets found below may still need to adjust.

                                                    Unklickly                    Unklickly XXL

0,0 origin towards the back right side - X,Y Offset = 1.7, -34.2

0,0 origin towards the front left side - X,Y Offset = -1.7, 34.2

                                                  Probe Mounts Compatibility Tables

Pinda (8mm/12mm)

*Install like below to get the appox. x,y offsets found below may still need to adjust.

                                                    Pinda              Pinda XL

0,0 origin towards the back right side - X,Y Offset = 0, -49.45

0,0 origin towards the front left side - X,Y Offset = 0, 49.45

                                                   Probe Mounts Compatibility Tables

BLTouch

*Install like below to get the appox. x,y offsets found below may still need to adjust.

                                                    *BLTouch pcb should be facing inward

0,0 origin towards the back right side - X,Y Offset = 0, -50.7

0,0 origin towards the front left side - X,Y Offset = 0, 50.7

                                                           Probe Mounts Compatibility Tables

*Every probe may not be compatible with every hotend option. Please reach out/leave a comment if your configuration is successful/unsuccessful; want to create an easy-to-read table to display what configurations are possible. Thank you!

Duct Compatibility Note

Duct mounting position has not changed from the original so some current community ducts should work if you prefer a different style or cooling method. (If you're looking for a CPAP design, I recommend looking at @TX_Ryan's designs for the Rapido UHF, and Goliath)

Heat Set Locations:

-Soon

Background:

Toolhead was created for my Zero G Mercury 1.1.5 that normal uses the EVA2.4 system however with the fans being located at the rear of the tool head the fans will hit the ab motors if you want more than just one part cooling fan on the back. The mantis addresses this issue with placing the fans on the front however I then loss y movement due to the fact the toolhead is all on the front of the extrusion. This hopefully this is the just right tool head for my setup and yours.

Work In Progress:

Hotends

Accepting suggestions

Extruders

Accepting suggestions

Probes

Biqu Micro Probe

CR-Touch

Beacon

Euclid

*Not seeing something you want to run please reach out and I will see what I can do.

Want to help?

If something isn't working compare the file, you printed to what is currently on this page as I am constantly making changes based on user feedback and what I am able to catch after the fact. If nothing has changed, please reach out to me so I can make the necessary changes.

If you have any questions or problems, please don't hesitate to comment as this will help me improve the tool head for everyone. That being said if you want a different type of extruder or hot end let me know and share a CAD file of it with me and I can see what I can do. Please recommend any other features you'd like included with this.

Combined the designs of both the 5015 Mantis and the EVA System
