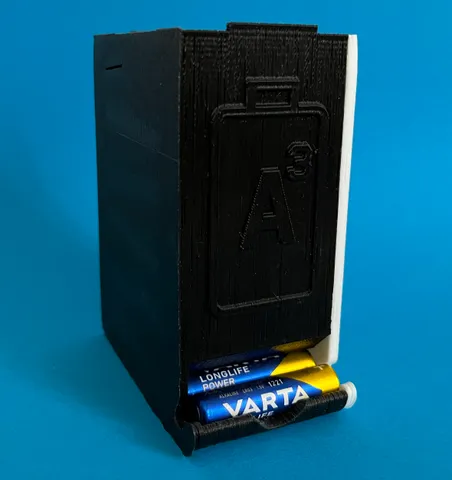

Battery Dispenser - 36x AAA - Stackable

I wanted to improve on the capacity, jamming issues, and printability of the Stackable Battery Holders by adoniram,…
141
941
18
3331
updated February 9, 2021

Makes

Comments

Se zásobníkem na baterky jsem moc spokojen, děkuji.

Image preview

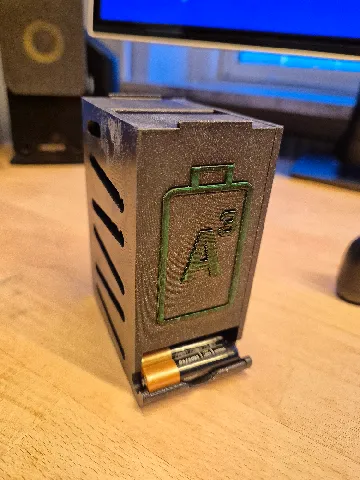

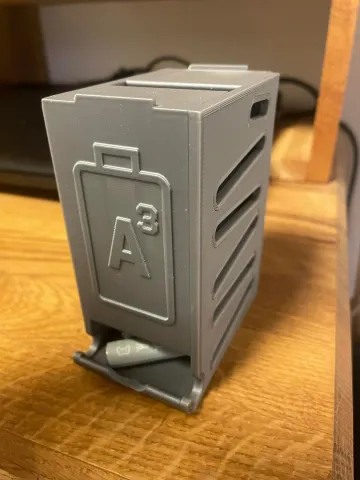

Printed in PLA+ and glued side on with superglue. Works pretty well, but batteries need a little encouraging to roll down when filling it sometimes

Image preview
Image preview

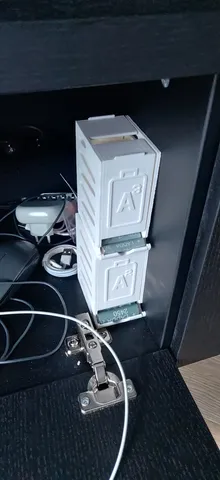

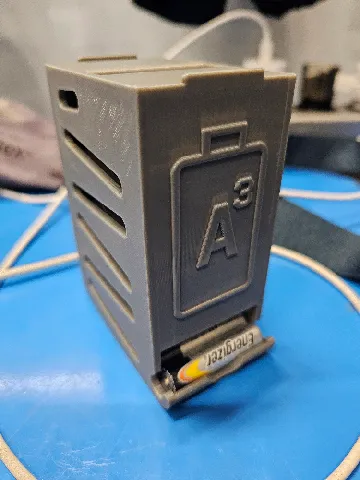

Works well, needs an occasional bump for batteries to flow down. Easy and compact storage!

Image preview

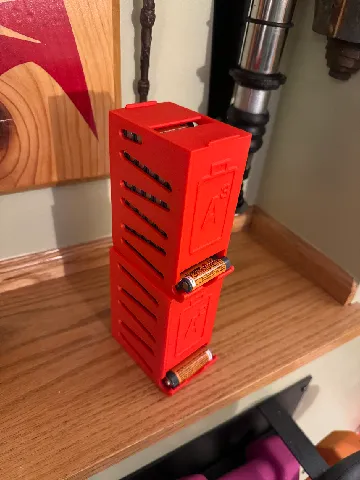

Good storage, but a bit tricky for me to get the batteries out.

Image preview

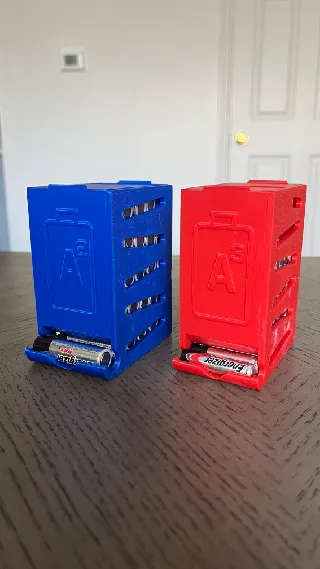

A bit hard to asemble, but really nice when built.

Image preview

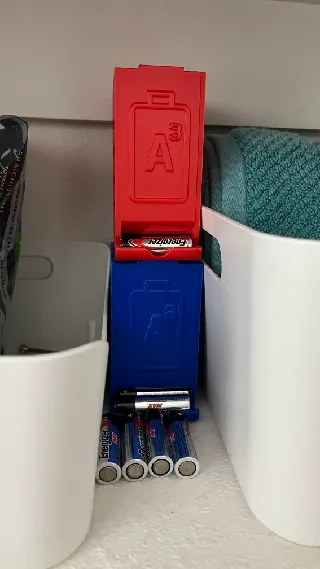

Good model, but make sure to load the batteries one at a time in case one turns. Thankfully the slats on the side allow for something like tweezers to turn the battery if it does. It does tend to still jam when removing the batteries though. I think the issue is those same slats sometimes hook on the positive side of the battery.

Image preview

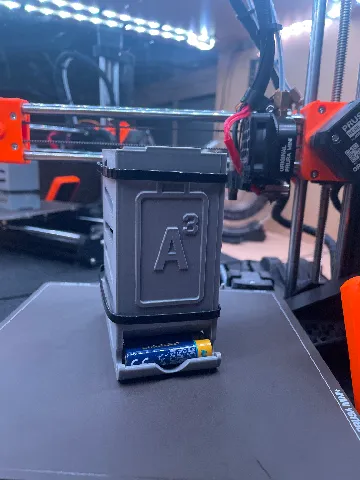

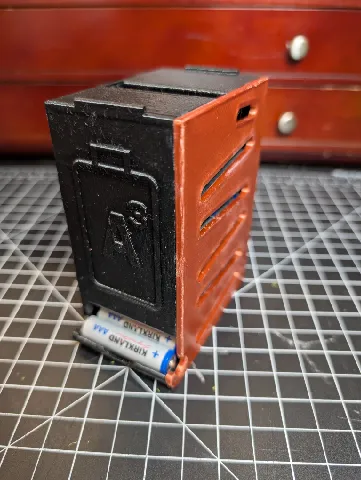

Printed side wall with different PLA.

Image preview

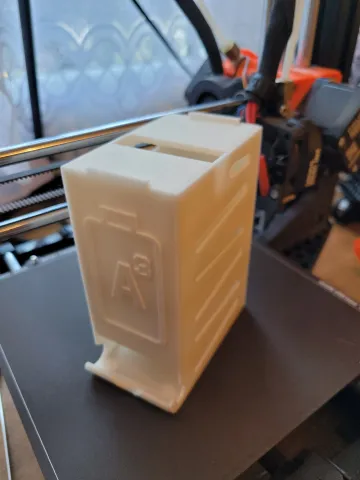

Looks very nice when printed. Batteries do het stuck every now and then.

Image preview

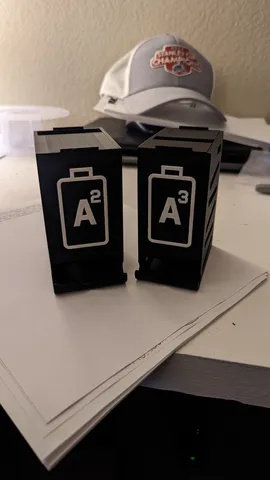

Printed both the AAA and the AA version in white PLA.
I found the batteries would sometimes still rotate and jam while loading, but since the side is detachable, this isnt really an issue.

Image preview

@GageCullum Looks good. Did you paint that, or is it a two-color print?

good model

Image preview

Nice design again. I done minor tweaks, like lowered thickness of wall. Will see if it will jam or not:)
