Voron 2.4 5015 Bed Fan (Purge Bucket + No Z-Endstop)

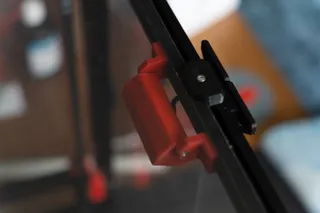

This remix of Ślimak's original provides an option for those folks running a purge bucket without a z-endstop (in my case because I'm running Voron Tap). It also addresses the problem of being unable to remove your purge bucket when this is fitted (by removing the left hand side of the original and re-working the airflow to compensate).

Bill of Materials

You'll need the following to assemble this:

• 5015 blower fan (Sunon/Delta etc)
• 4x M3 T-nuts
• 4x M3x6 FHCS

When attaching the fan, you may find it useful to place some 1mm foam tape on the bottom of the fan to reduce vibrations against the bottom panel.

Printing Guidance

This part is designed to be printed using the standard Voron structural parts settings, namely:

• 0.4mm nozzle
• 0.2mm layer height
• 40% infill (grid/cubic/gyroidal/honeycomb)
• ABS/ASA
