Filament diy dryer support for 3D printer

This support has been meticulously designed to seamlessly integrate with the "DIY Dehumidifier for 3D Printer Filaments" on an Original Prusa MK3S+ printer. Although I haven't had the opportunity to conduct a test run, I firmly believe that it can be equally compatible with an MK4 model.

Moreover, considering its dimensions, all the printed parts and components can be effortlessly fabricated utilizing an MK3S+ printer, employing either PLA or PETG filaments.

It is worth noting that some supplementary screws will be required for assembly; however, it is a noteworthy advantage that no modifications to the hardware are necessary.

Furthermore, this support boasts several strategically placed additional holes, facilitating its adaptability to other printer models through the utilization of T-nuts.

Currently, I am working on an additional support structure that will enable direct filament placement, when the filament dryer is not needed.

BOM

	Description	Reference Image	Qty
1	printer_dryer_mount		1
2	bracket_center		1
3	bracket_left		1
4	bracket_right		1
5	M4 x 12 x 0,7 flat allen screw		6
6	DIN 912 M3 x 20 x 0,5 hex screw		4
7	M4 x 0,7 square nut		6
8	M3 x 0,5 hex nut		4
9	M3 x D8,2 x h1,3 mm washer (thick washer)		4

Assembly

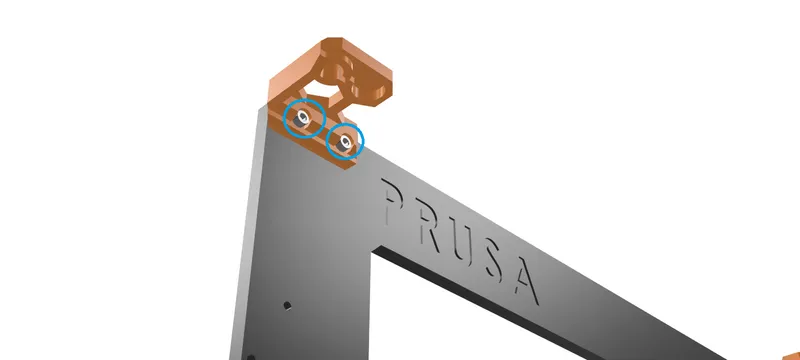

1. One at a time, replace the 2 M3x12x0.5mm screws holding the "Z-axis-top-left" with 2 M3x20x0.5mm screws.

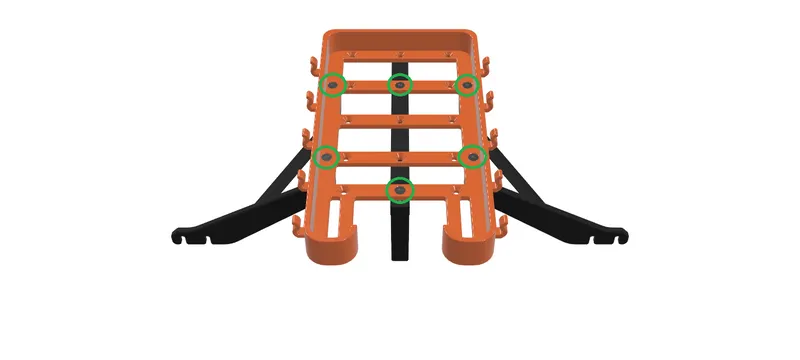

2. Using the M4 flat screws ant the M4 square nut, assemble the printed parts together.

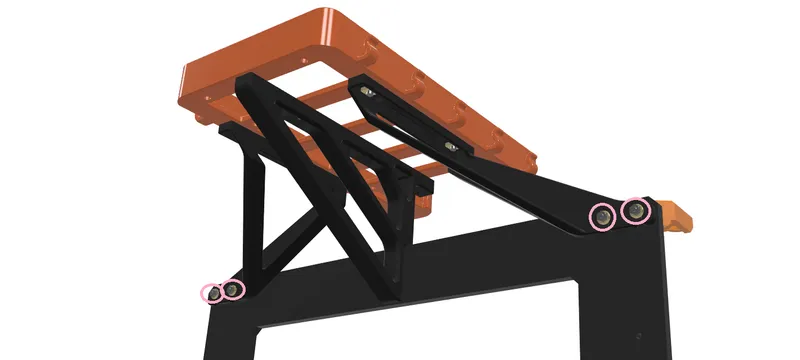

3. Position the assembly over the frame and onto the M3x12mm screws, securing it using the M3 nuts and washers.

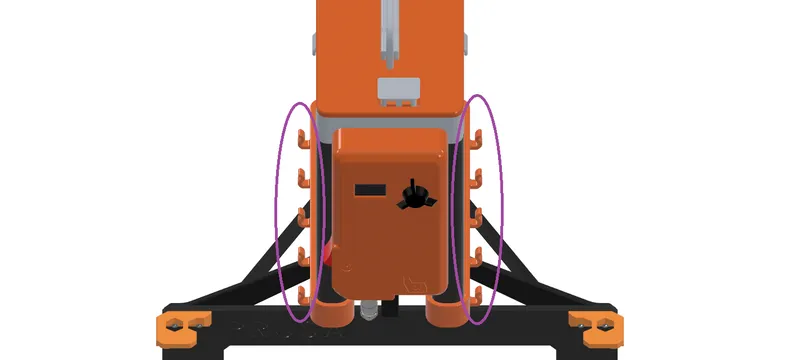

4. The power supply cable can be placed on either side of the bracket.

I hope you find this useful.

Happy printing.

DIY Dehumidifier for 3D Printer Filaments

https://www.printables.com/model/494417-diy-dehumidifier-for-3d-printer-filaments

Filament spoolholder for dryer support (on 3D printer)

If you need to continue printing while drying filment at the same time, you can check this model:

https://www.printables.com/model/587294-filament-spoolholder-for-dryer-support-on-3d-print
