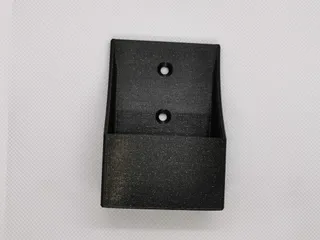

Universal Robots e-series teach pendant holder

Just a simple teach pendant holder for a welding table with 16 mm holes in a 50x50 mm grid
7
126
2
557
updated July 30, 2023

Description

PDF

I got tired of always holding the teach pendand in my hands or having someone else hold it while showing robot functions and this really works like a charm.



I printed it with Bambu X1-Carbon on default PETG 0,2 mm profile with 0,4 mm nozzle.

The only other thing that you need to make this work as intended are 3x heat thread inserts and 3x M5 hex head screws (about 25 mm long). I used M5 x 9,5 mm heat thread inserts from CNC Kitchen.
