Cube Container with Chamfer, 75 Sizes

I developed this simplistic cube container design with the aim of 3D printing a decorative stack. I'm sharing this design as it serves as a useful foundation for various projects and offers insight into the creation of such objects using Fusion360.

The cube is crafted in a way that ensures visual coherence when stacked, although it doesn't possess specific features for alignment or joining cubes. Consequently, when multiple cubes are glued together, the chamfers provide a unified and balanced appearance.

Printing the Cubes

The file section comprises a PrusaSlicer project named LR2335-R10-L060 Print.3mf encapsulating all the suggested settings. You can directly use this file, or refer to the following table for specific parameters:

Dimensions

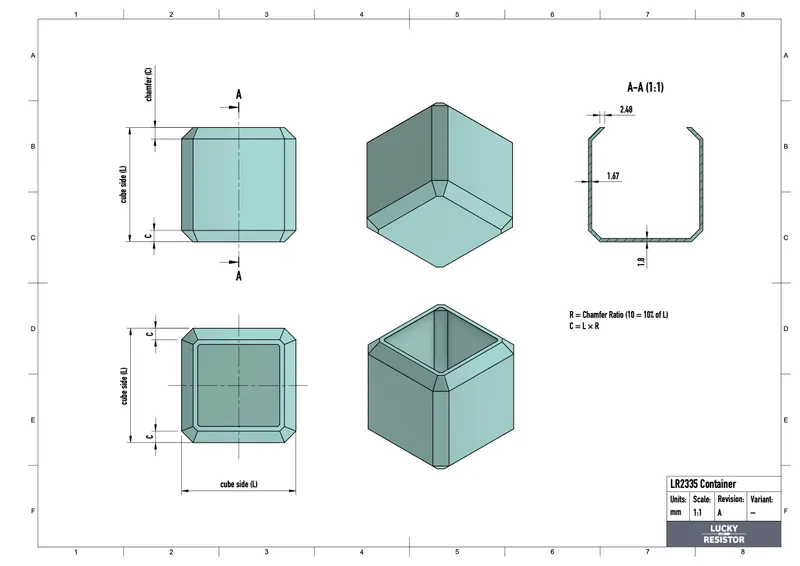

The diagram above illustrates and labels the container's dimensions. These dimensions are included in the filename of each model. They can also be found in the accompanying PDF catalogue, along with useful tables to help identify the appropriate model.

LR2325-R<chamfer ratio>-L<side length>.3mf

Chamfer Ratio (R)

The chamfer ratio contributes to the box's aesthetic. It's the chamfer's width relative to the side length, represented as a percentage.

For example, 10 signifies 10%. Therefore, a container with a side length of 60mm and a chamfer ratio of 10% will feature a 6mm wide chamfer.

Chamfer widths are always rounded to full millimeters. The PDF catalogue includes the exact chamfer width values for each model.

Side Length (L)

This refers to the cube's side length, measured in millimeters.

Explore More from Meti·kumi

Interested in my designs? Browse through my collection of 3D models:

👉 https://metikumi.com/3d-models/

Stay connected on social media for the latest updates and work-in-progress insights:

👉 https://metikumi.com

Conclusion

This is a very basic design, yet I hope you have some use for it.

Happy printing!
