can someone send a link to the proper screen to use for this? the one I have doesnt have a bezel and I cant get anything to really fit.
Raspberry Pi 7" TouchScreen & Rpi 4B Enclosure mount
Makes
Comments
@KoryStiner_4120716
Hello!
the exact reference I ordered is this one: https://befr.rs-online.com/web/p/raspberry-pi-screens/8997466?gb=a
The brand is Raspberry Pi.
Have fun!
@ERaw_51141 thank you so much!

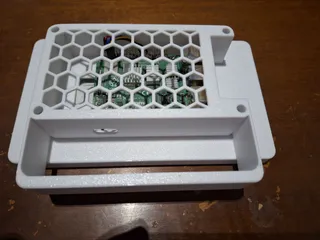

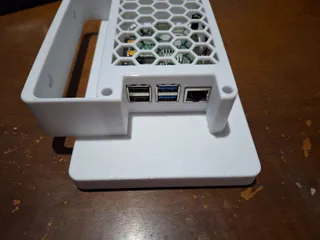

It is printed with Azurefilm PETG White. Printed correctly, fit well. The only missing information is that you will need 4 screws M3x40 or M3x35 depending of screw type you will use
@DubravkoPenezic Hi! Glad it printed and fit well.
Thanks for the remark about the assembly screw, I'll add it in the details ;-) (edited)
Hi, could you please provide the f360 model for adjustments? I would like to adjust the bolt depth so that I can use an M3x30 instead of an M3x35. Thanks in advance
Hi, are you able to make this mountable at an angle slightly tilted backwards please?
@TheCableGuy96 Hi! I can provide the F360 or STEP files if you want to remix it. Let me know if you're interested ;-)
@ERaw_51141 Hi mate, thanks very much for the offer, I'm just not skilled enough to use it. I have tried twice to learn F360 but given up, it was easier to get into Game of Thrones lol
View one more comment
@Blake52_72610 Hi! I guess it is, but it is a complete redesign as size and mount points are not the same. Let me know if you need the F360 file for a remix ;-)

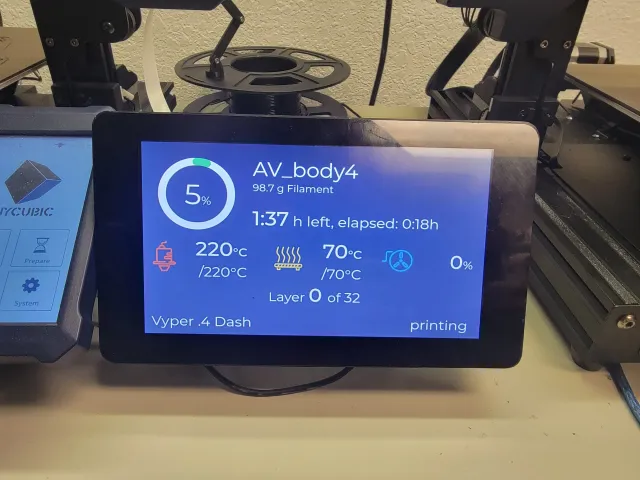

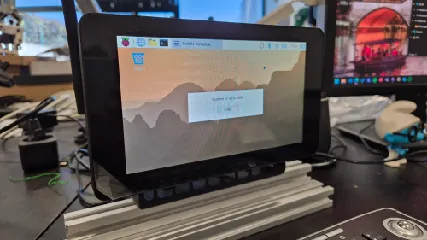

Very great fit on the official display! I added two oblique cubes so that I could tilt the display.
