Crossbow Kit Card (fully printed)

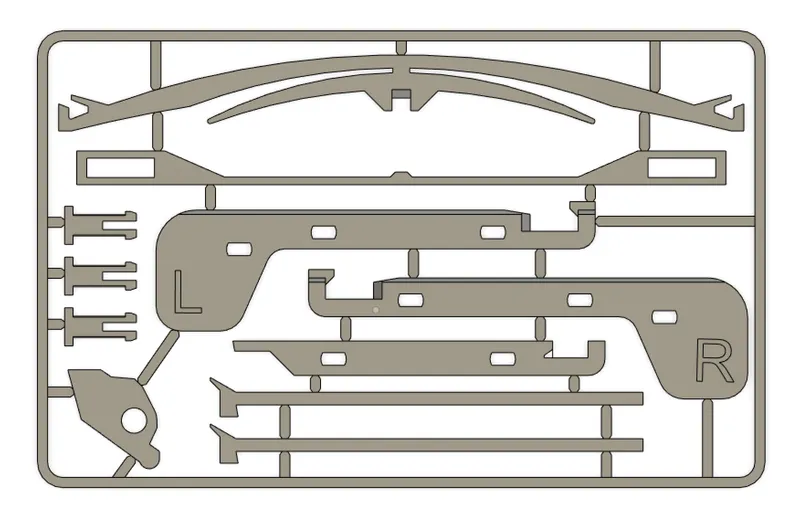

Crossbow kitcard, credit card size, all printed
34m
1× print file
0.20 mm
0.40 mm
4.00 g
In the contest Kit Cards
5,352
22 k
201
73 k
updated October 9, 2023

Description

PDF

It's a fully printed, pocket size crossbow



Have fun!



don't hurt anyone





How to make it



  1. print the file kitcard_crossbow.stl
  2. seperate all the parts (maybe using a small wire cutter)
  3. take the part with the R and put the pins in
  4. connect the bow with the middle part
  5. put together the two sub assemblies
  6. add the trigger
  7. now the part with the L
  8. put on the bowstring
  9. load and shot




changelog:

#9.10.23 made the pins smaller for more clearance

#8.8.23 optimized geometry of bow and changed g-code to petg on MK3
