Hormann Remote Control Protective Sleeve/Cover Front Cap (HSE4BS, HSE2-868-BS)

A front cap for Hormann Remote Control Protective Sleeve (HSE4BS, HSE2-868-BS).

To be used with Hormann HSE protective case by Jakub Kalfař.

I uploaded a STEP file so you can change the dimensions if your doesn't fit. It's important it fits snug in the cover.

Print Settings

Material: PLA
Layer height: 0.2 mm
Perimeters: 3
Infill: 15%

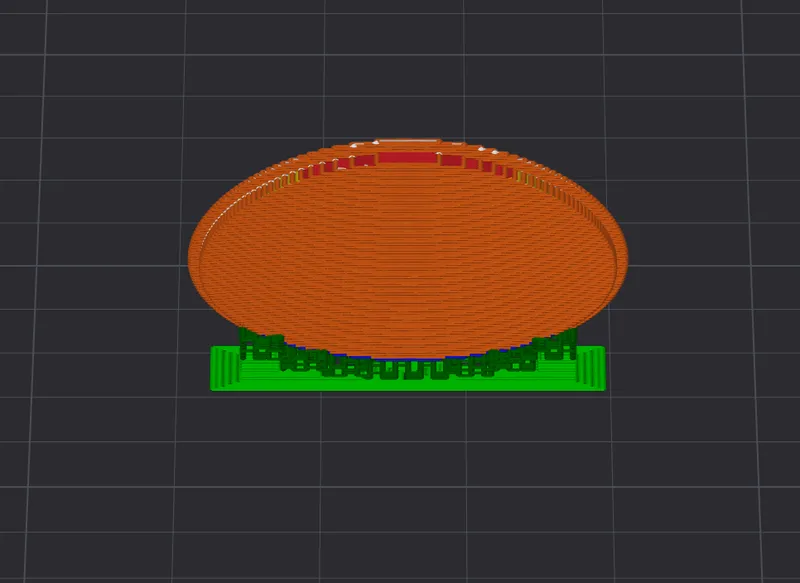

Supports: yes, used standard on manual settings and painted only the bottom part with overhang angle 30° (or 60° depending where you measure it from → see the picture bellow and adjust the settings so it looks like this).

Other replacement parts

If you broke yours like I did, here is a list of replacement parts I found and made to repair mine.

• Hormann HSE4BS replacement cover with a hole by Hologos
• Hormann HSE4BS remote control buttons by Hologos
• Hormann Remote Control Protective Sleeve/Cover Loop (HSE4BS, HSE2-868-BS) by Hologos
• Hormann Remote Control Protective Sleeve/Cover Back Spacer (HSE4BS, HSE2-868-BS) by Hologos
• Hormann Remote Control Protective Sleeve/Cover Front Cap (HSE4BS, HSE2-868-BS) by Hologos
• Hormann HSE protective case by Jakub Kalfař
