No Support Required Customizable Dummy Battery (AAA, AA, C, D, user defined)

Customizable Dummy Battery (AAA, AA, C, D, user defined)(Remixed) Original author by Eansdar…
41
487
4
1925
updated February 20, 2022

Makes

Comments

Easy and fast to print and come in all different sizes :-) Nice and basic design that can be used almost every where to bridge or bypass batteries in a battery holder.

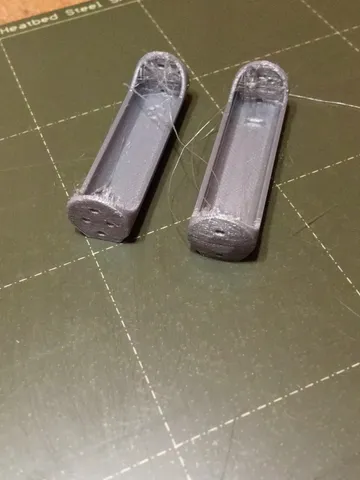

Image preview

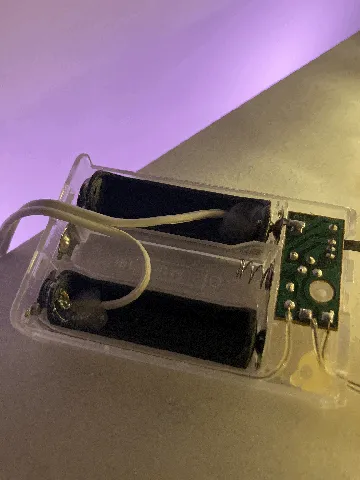

Powering some decoration lights from socket instead of batteries with these. Great design!

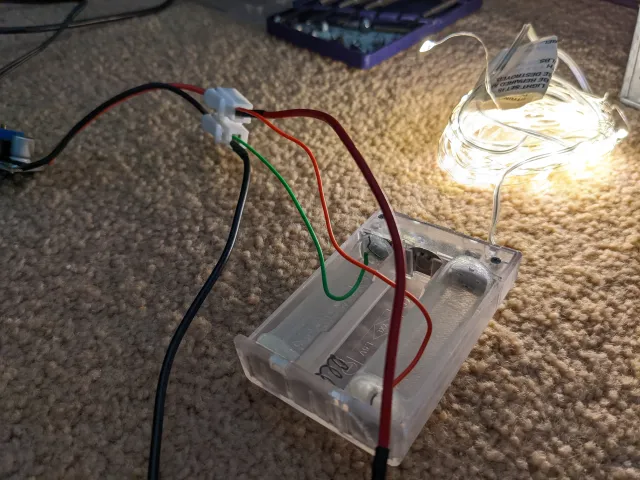

Image preview

Realy good and IT fits perfectly

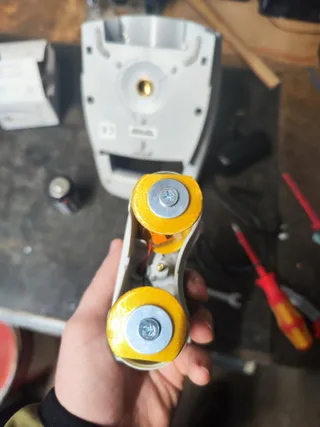

Image preview
Image preview

Great design. This is easy to print, use as little filament as possible while the print still remain very rigid.

Just what I was looking for. These are a very tight fit using 0.8mm solid core wire at just one end of each. I think I'll scale them down slightly for the next set - the spring in the battery box should provide enough compression in most cases to ensure a good contact.

Image preview

@milks Glad it worked. Used PLA? I've heard of some fit issues. Haven't had time to properly adjust it but will place it into github in the near future so that people can cleanly push in their suggested fixes.
