Prusa MINI - X-carriage with better cooling

This is a modified X-Carriage for the Prusa MINI with part cooing ducts for the Revo Micro and the Stock Hotend.

Remixed from solderjul. Changes listed below.

Updae V26 12.11.2024:

• Slightly increased exit-size of middle duct
• cut of part of the middle duct to increase clearence with the bed-connector
• improved printablility

Update V23 07.04.2024:

• Angeled the side ducts a bit more inwards
• Made a CFD analysis with SimScale
• This should help with better cooling from the front

Update 05.10.2023:

• Pinda mount now has more clearence for hotend wires
• Updated F3Z & STEP files

Update V22 29.09.2023:

• Angled the middle duct more downwards
• shortened the side ducts a little

Update V20 26.07.2023:

• Made middle duct way bigger
• Improved compatibility with stock hotend

Update V19 14.07.2023:

• Re-introduced the middle duct.
• made the middle duct bigger.
• Air-splitting thingies are now fancier and easier to print.
• I remade the entire F360 file for better clarity.
• F360 and STEP files include some of the original components for reference.

Update V14 07.07.2023:

• Removed middle duct.
• Improved geometry where air gets split.
• This will greatly improve clearance when levelling.

Important clearance info:

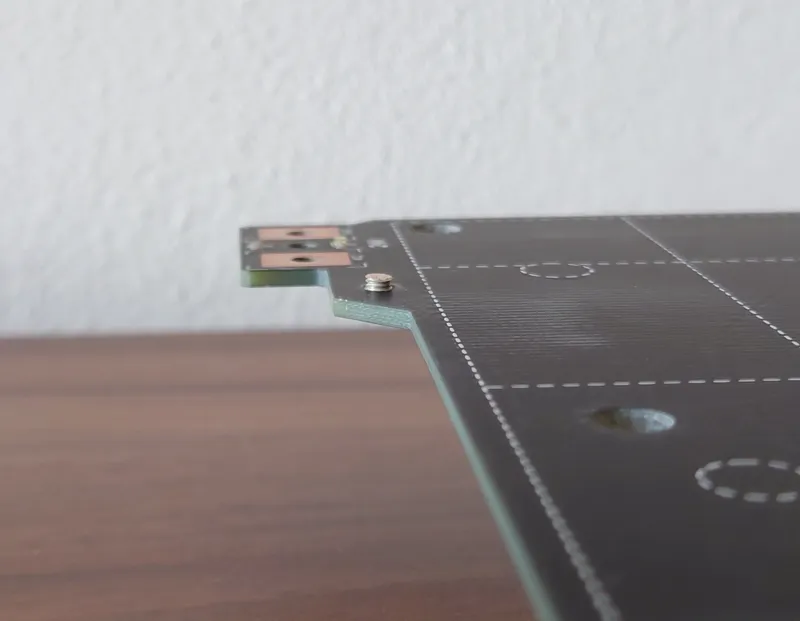

I filed down the studs in the back of the bed a while ago, so i don't know if it'd work with original studs.

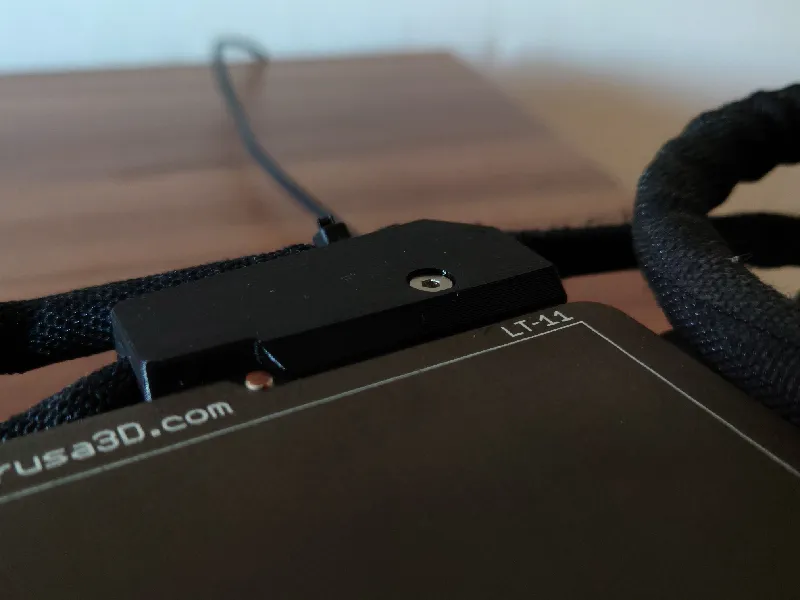

Additionally, i would also highly recommend printing my 90° Bed-cable mount:

It has a lower profile compared to the original connector and a countersunk screw.

You'll also want to install a pair of these little spacer clips on the X-rods, so the duct doesn't crash into the Z-carriage:

Info: The STEP and F3Z files include both, the Revo Micro and the original hotend for reference.

Also check out my modified Revo-mount with an M8 thread on the top

1. The janky cutout for the Pinda probe is gone, but you'll have to print the included SLIM Pinda-holder.
2. I improved the geometry of the little separators on the inside, so it is actually printable, and doesn't just create two huge droops inside the duct
3. I also made the exit-holes quite a bit shorter, so they will actually work with the revo, unlike the original, that is sitting ~0.3mm too low.
4. The geometry on the inside is smoother, because it had a few leftover cutouts that aren't needed with the Revo.
5. Compatible with both Revo, and Stock hotend.
6. Unlike the original, this description is written by a human.
