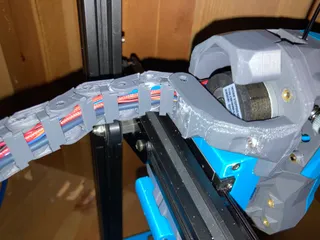

I wanted to implement the Voron Stealthburner (Clockwork 2 and V6) on my Ender 3 Pro. At the same time, my v rollers were a bit worn, so I decided to replace the x-rail for cheap. This would allow me to utilize the majority of the Switchwire/Stealthburner carriage. These mods will allow you to utilize this x linear rail and, if you ever wanted to go full Switchwire, keep most of the Stealthburner Assy as-is, so I tried to make this as simple and straightforward as possible.
You will need 2x of the Belt Adapter (replaces the belt clamp in the SW manual) and place heat inserts and the same M3x16 SHCS as found on the Switchwire Assy manual page 62. This is for a Ender 3 PRO x axis belt and I'm not sure if the other Ender 3 models have the same length belt, so if you try it, let everyone know in the comments.
As far as the limit switch mount, this replaces the servo gear cover. You will not be able to use the long stock screws to attach it to the frame, but will need 4 M3x10 to go through this bracket into the threaded motor. You can re-use the same small 2 screws for the switch itself.
Note that you do lose about 35-40 mm of build area (along the y axis) due to the Stealthburner and rail.
These were printed with ASA using Voron print settings, but neither require high temp resistance and the limit switch bracket doesn't require much strength, so other materials should be ok.
