Fan manometer - check your fan's static pressure

What you will need

• Transparent/translucent filament
• Water
• Food coloring

How to use

• Print the main model and the adapter for the fan type you want to test. (There's only a 5015 adapter right now, I'll add 4010 and 4020 soon)
• Fill partially with colored water, maybe halfway. Don't fill too much or the water will spill out when you turn on the fan
• Screw in adapter onto one arm
• Turn on the fan and hold it on the adapter. Press down so the air doesn't leak too much.

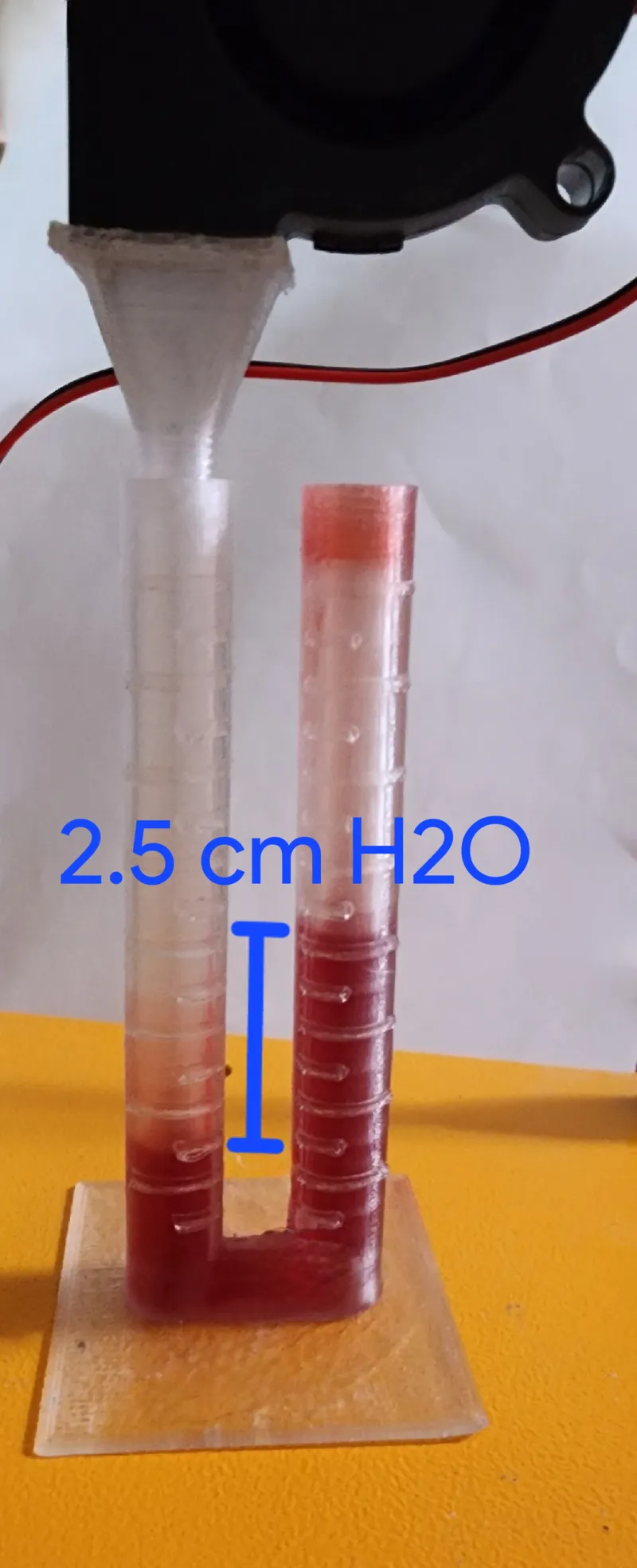

• Measure the difference between the water levels in the two arms. That's your static pressure (in units of water column). The big divisions on the manometer are 1 cm and small divisions are 5 mm

Print settings

• All files in correct orientation for printing
• Print with 0.12 mm layer height for better threads
• Increase flow by 1-2% to make sure everything is water tight and to make the print more transparent
• If you want tips on how to make your print more transparent, watch this video. But it should be fine as long as you can see the water level.
