Sub Terra Game Box Organizer

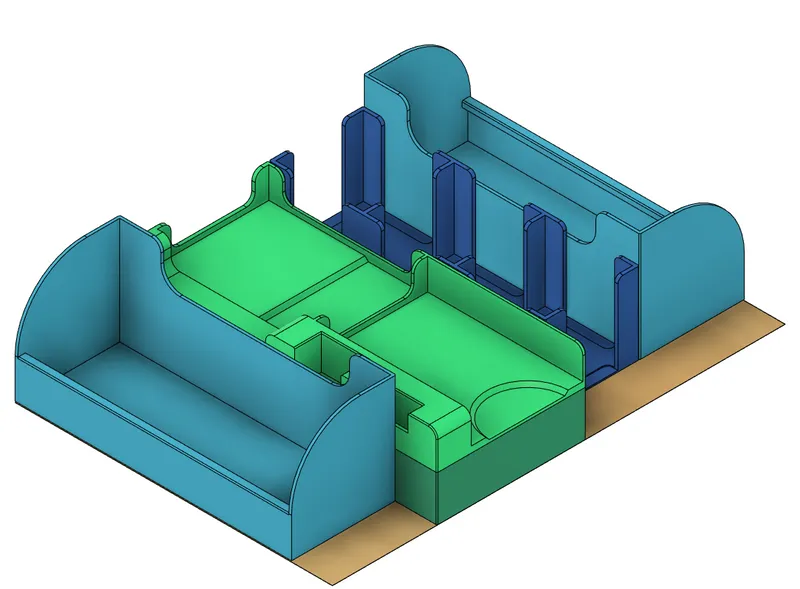

Box Organizer Parts layout (1/8in x 1/16in cylinder magnets for nested trays optional)

There are still a few places to add custom trays (where the plastic baggies are now in the picture below). I am designing a few trays and will amend the file list accordingly, but for now they are open spaces to do with what you may.

Draw-deck had open side for cards to slide out. Discard (storage side) has an uneven base so you can tile the entire deck out by pressing on one end).

Recommend printing a pair of tile bases to be sure your print tolerances are good. There is a 0.2 clearance on my printer that does just fine and the tiles fit together cleanly with little wobble. When placing tile trays onto the table, the gap between the tile and the tray allows the tab to be inserted then dropped down without having to remove the game tile. Keep in mind for this system to work all tile trays need to have a consistent orientation. (recommended to pick a tap direction (example UP and RIGHT) for all players to remember that way even if you get to a point where you need to place a tile in the middle somewhere it will align.

GAME ON!
