Profile cable/filament guide clip (for Ender 3 serie)

Simple clip that clamp on your Ender 3 and hold your cables.
In the contest Clamp-On Items
8
24
0
244
updated June 21, 2023

Description

PDF

This simple clip clamps on your Ender 3 profile to hold cables and prevent them from falling everywhere while printing the 56H print using half the filament roll.



Printing: 40% gyroid infill.

Non-printable parts required: 1x M4 “cone head” screw (20 mm head to tail) and 1x M4 nut.

P.S: please post fabrication and comments so It makes me feels useful and it helps me improve the mistake I may have commuted :)

Assembly instructions:

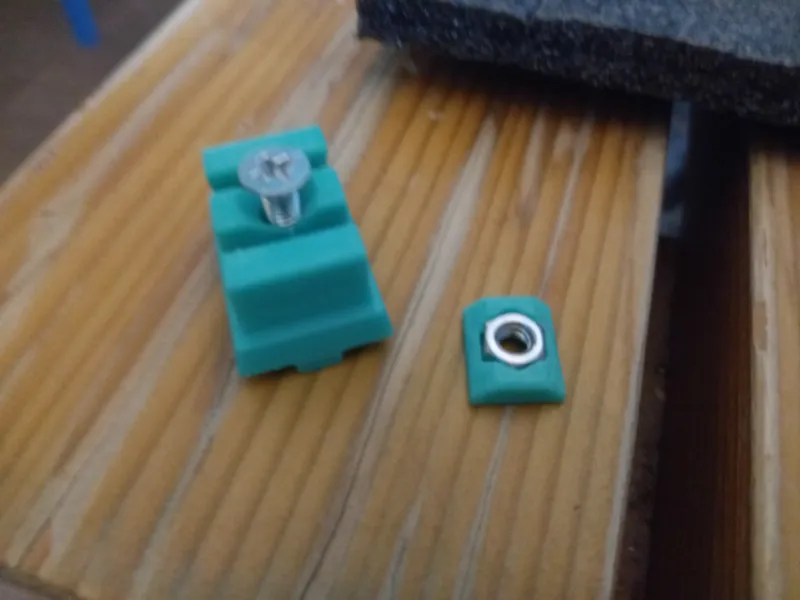

  1. Put the screw in the hole of the “main clip” and the nut in the hole of the “profile nut”.

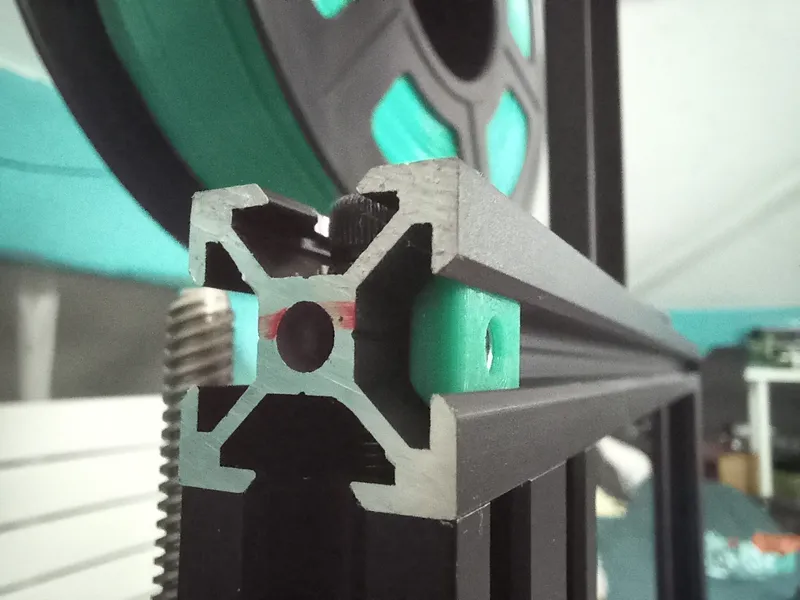

  2. Put the “profile nut” in the printer profile.

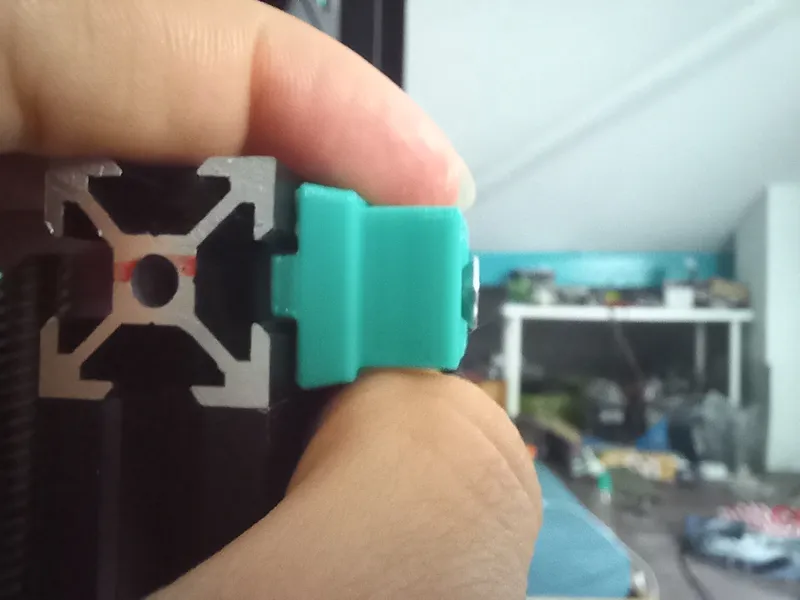

  3. Align the screw from the “main clip” with the nut and fasten with a screwdriver (didn't have a third arm to show it and take the picture :D)

Exploded view:

Tags



Model origin

The author marked this model as their own original creation.
