IKEA Skadis - Wall Spacer

Print instructions:

I decided to use PETG. I decided to increase the overall strength in the slicer with modifiers, no supports. See the attached 3MF file for detailed print settings.

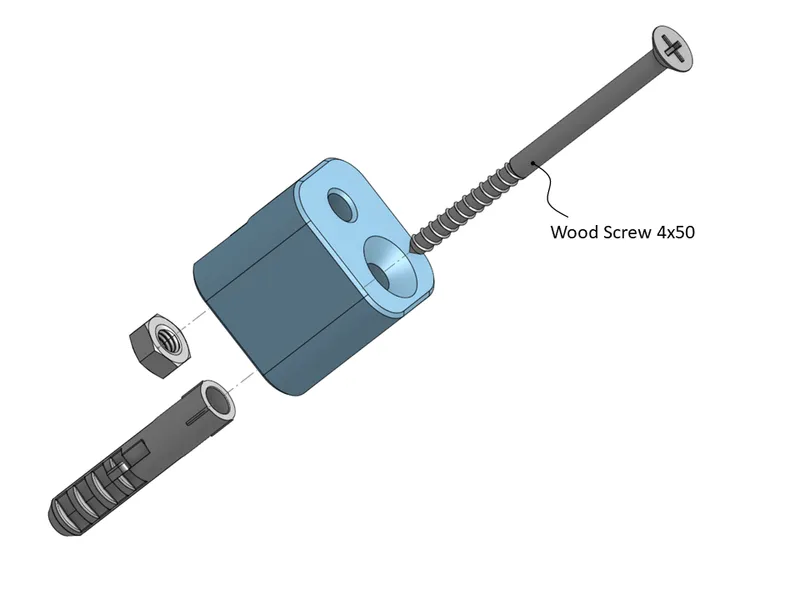

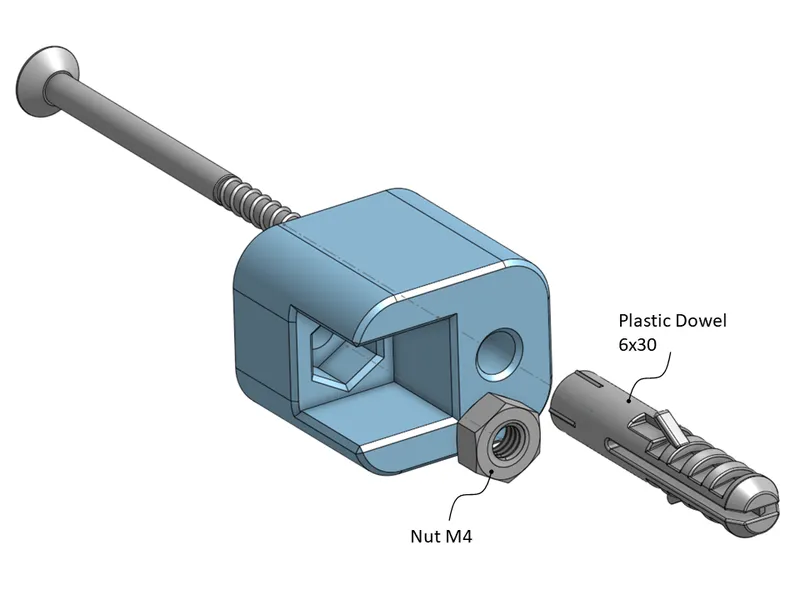

Part List:

• Printed parts [x2]
• Nut M4 [x2]
• Wood Screw 4x50 [x2]
• Plastic Dowel 6x30 [x2]

Assembly Instructions:

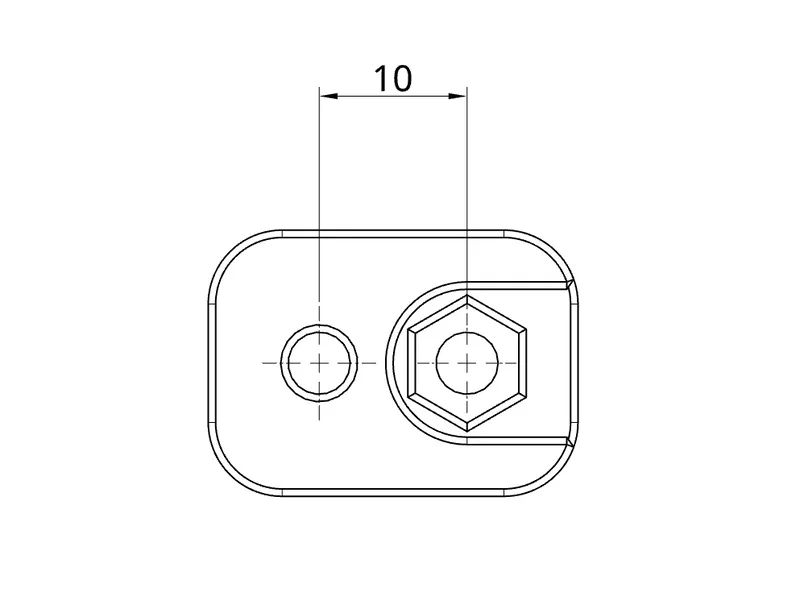

• Please remember that the holes spacing is 10 mm.

• Press the M4 nut into the plastic part. Use a screw or pliers.
• Insert a plastic dowel into the drilled hole in the wall.

• Fasten the plastic part to the wall with a wood screw.
• Screw the IKEA Skadis pegboard with the original M4 screws.

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape.

OnShape Link

Note:

Please don't forget to leave a rating or a comment. Feedback is important for me Thank you very much.

Happy printing!
