SSD adapter for 3.5" server hotswap carrier (3.5" to 2.5")

Adapter for mounting SSDs in existing 3.5" server hotswap bays that has some sort of bottom support. Tested on Dell, HP/HPE old-style and HPE “smart” -carriers.

• Use 3 of the original screws to fasten the adapter
• Insert the two small pegs at the middle of the adapter into one side of the SSD
• Fold down the SSD against the wall of the carrier

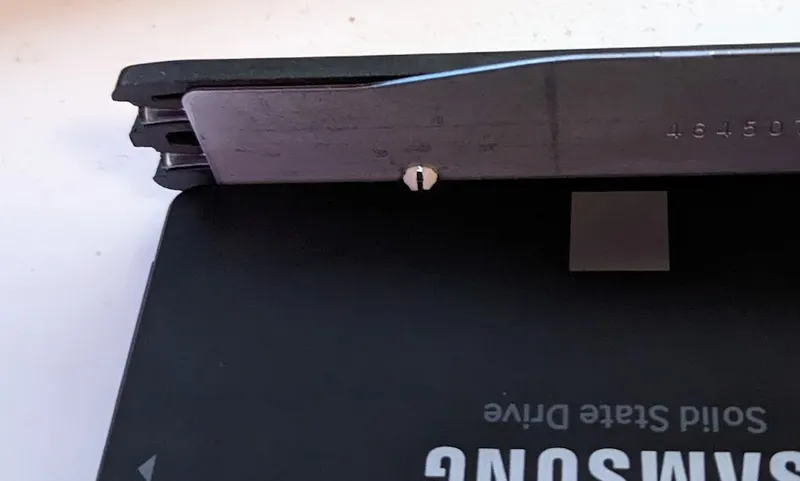

Optionally also print one of the pegs and secure the SSD in place. I found it to be completely unnecessary for Dell carriers, probably a good idea for “smart” HPE carriers and highly recommended for old-style HP carriers. The included pegs are for 7mm high SSDs, aka most modern ones.

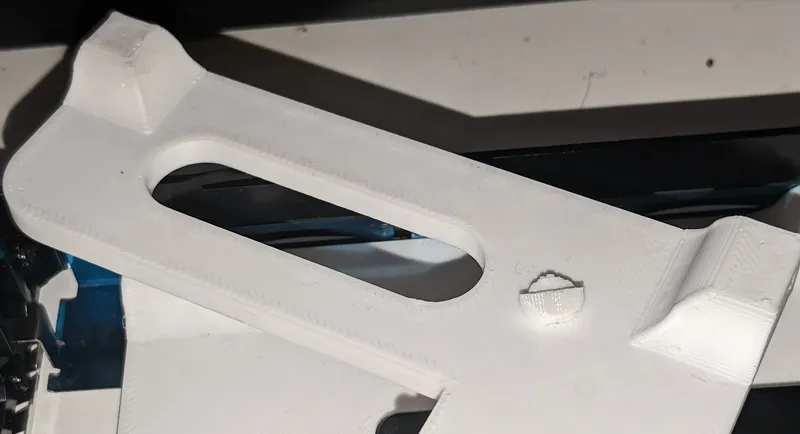

The adapter has a hole for fastening one or two of the fastening pegs so you don't loose them before getting around to install the adapter.

Printing notes:

• No supports needed.
• Printed in PETG, but should with fine with PLA as long as you take care to not overstress the fastening pegs.
• Use a small layer height for the fastening peg to make smoother and thus easier to insert, 0.08mm or so. The main adapter does well with 0.2.
